Запчасти Case SV185 (35.525.AA[05]) - CASE DRAIN CHASSIS PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS

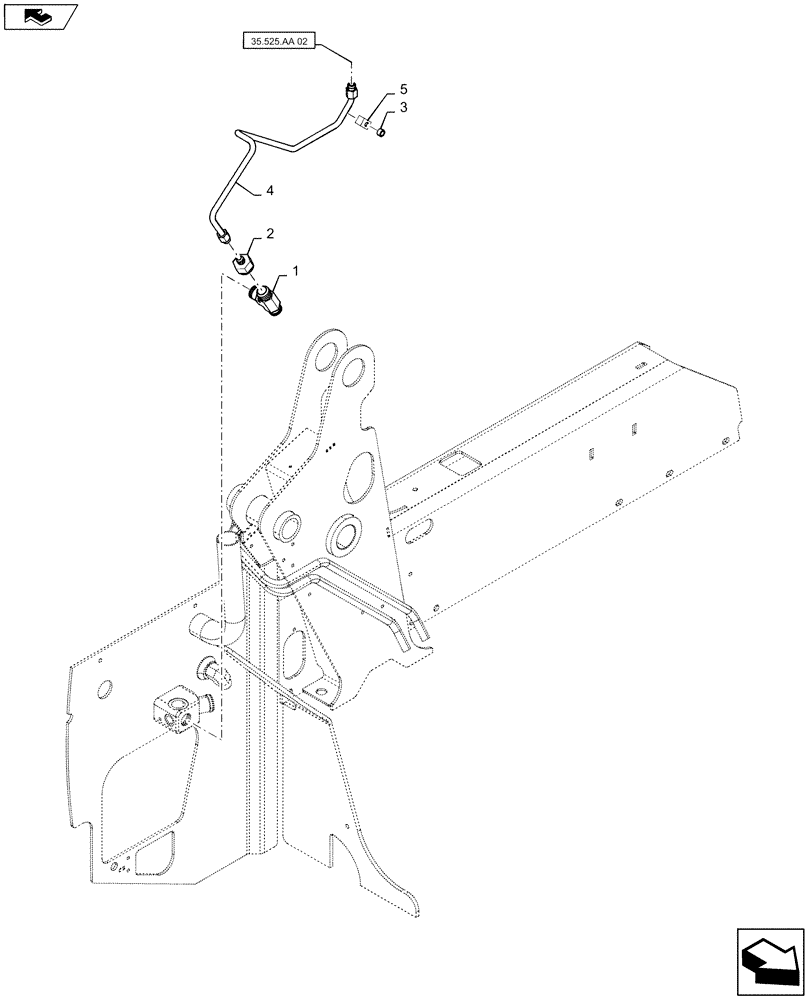

Схема запчастей Case SV185 - (35.525.AA[05]) - CASE DRAIN CHASSIS PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS
5
2
4
3
home
1
35.525.aa 02

Артикул

Название

Примечание

Количество

1

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

, Years: -13-NOV-14

1шт.

1

9618949

TEE,37 Degree -16 x -16 ORB Branch x 37 Degree -16

, Start Year: 14-NOV-14

1шт.

2

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

1шт.

3

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

4

47493690

HYD TUBE

Case Drain, Years: -13-NOV-14

1шт.

4

47662414

HYD TUBE

Case Drain, Start Year: 14-NOV-14

1шт.

5

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Выбрано товаров: 7
