Запчасти Case SV185 (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (29) - HYDROSTATIC DRIVE

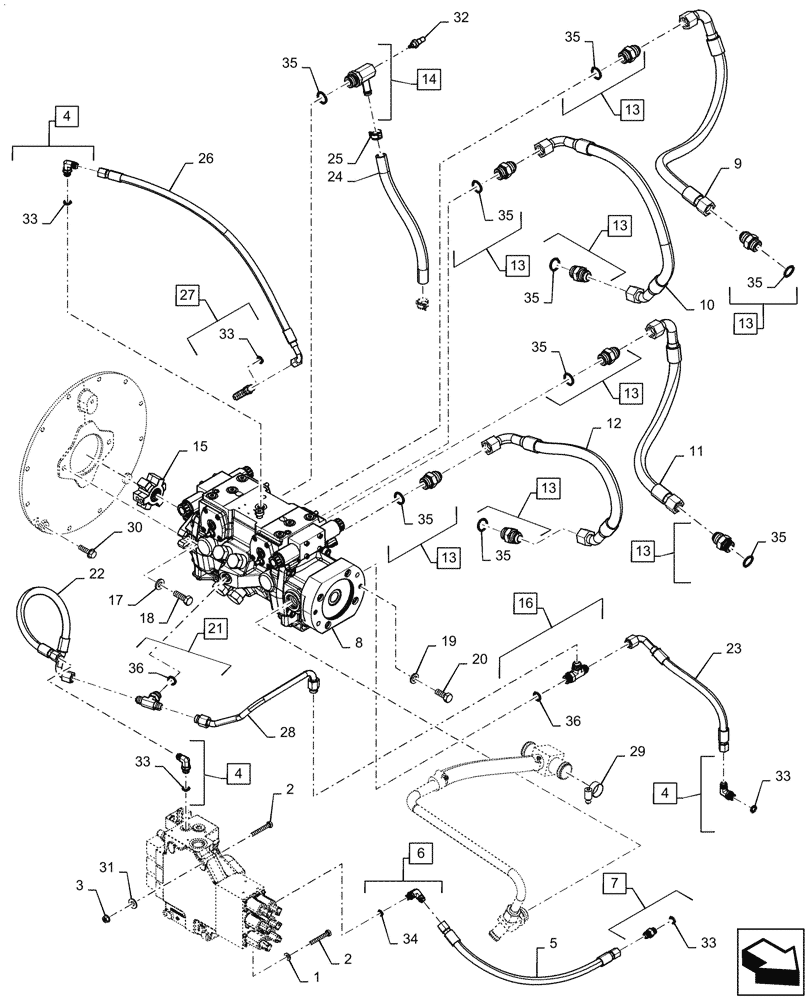

Схема запчастей Case SV185 - (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (29) - HYDROSTATIC DRIVE
13
13
23
22
13
17
35
31
10
29
20
1
13
12
36
2
35
28
27
21
35
35
15
4
13
18
5
24
3
14
33
7
13
33
11
19
33
9
35
13
35
33
16
34
13
35
25
32
4
36
8
26
35
4
6
35
30
33
2

Артикул

Название

Примечание

Количество

1

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

2

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 33

3шт.

5

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

1шт.

6

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 34

1шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 33

1шт.

8

47775933

PUMP

EH Hydraulic, 35cc

1шт.

9

84412421

HYDRAULIC HOSE,16mm ID x 730mm L, SAE 100R19

Loop

1шт.

10

47843574

HYDRAULIC HOSE,16mm ID x 707mm L, SAE 100R19

Loop

1шт.

11

84258854

HYDRAULIC HOSE,15.88mm ID x 669mm L, SAE 100R19

Loop

1шт.

12

47843573

HYDRAULIC HOSE,16mm ID x 621mm L, SAE 100R19

Loop

1шт.

13

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 35

8шт.

14

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 35

1шт.

15

87711337

COUPLING,19T, 1-1/8" ID

1шт.

16

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 36

1шт.

17

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

18

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

20

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

21

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 36

1шт.

22

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

EH Valve Interlock

1шт.

23

84299737

FLEXIBLE HOSE,9.53mm ID x 377.8mm L, SAE 100R17

Brake Charge EH

1шт.

24

84273645

HOSE,15.88mm ID x 327mm L

Pump Drain

1шт.

25

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

26

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

EH Brake

1шт.

27

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 33, Years: -02-OCT-16

1шт.

27

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

, Start Year: 03-OCT-16

1шт.

28

84349300

RIGID TUBE,12.7mm OD

EH Charge Supply

1шт.

29

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

30

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

2шт.

31

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

32

87688409

TEMPERATURE SENDER,M10 x 1.0

1шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

34

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

9шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Выбрано товаров: 37
