Запчасти Case SV185 (10.404.BB) - WATER PUMP (10) - ENGINE

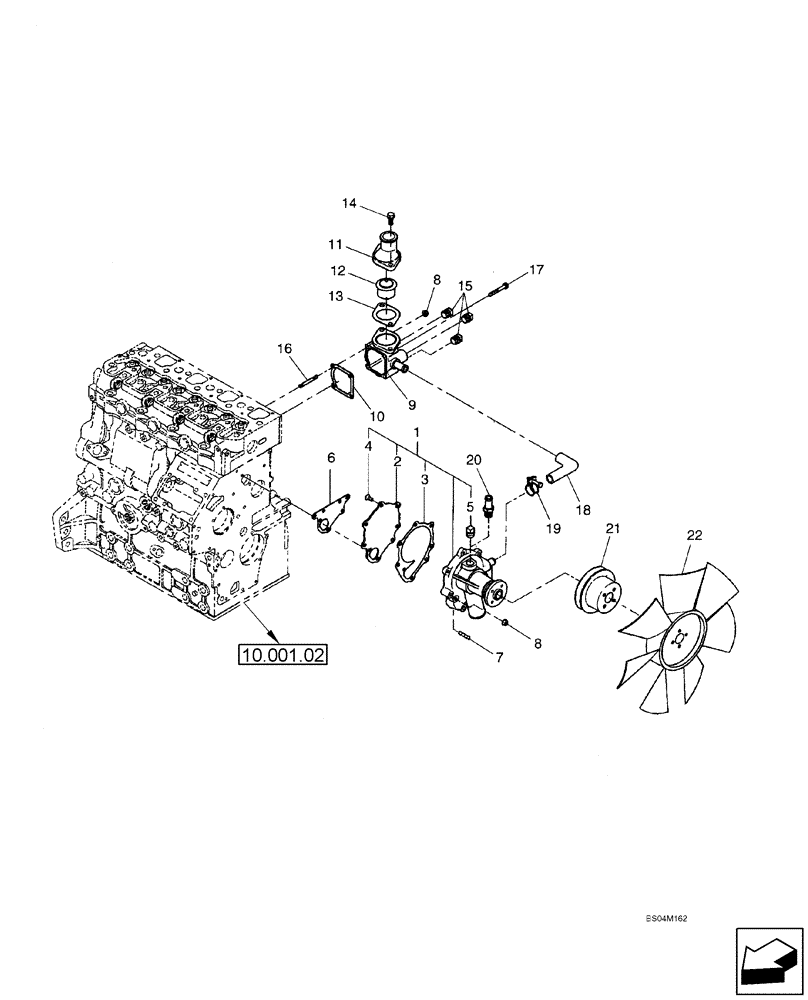

Схема запчастей Case SV185 - (10.404.BB) - WATER PUMP (10) - ENGINE
10.001.02
15
19
18
12
13
2
6
20
1
16
8
10
7
21
8
22
11
3
9
17
4
5
14

Артикул

Название

Примечание

Количество

1

SBA145017730

WATER PUMP

Incl. Ref 2 - 5

1шт.

1

SBA145017730R

REMAN-WATER PUMP

1шт.

1

SBA145017730C

CORE-WATER PUMP

Return Number

1шт.

2

SBA145146320

PLATE

Set

1шт.

3

SBA145996680

GASKET

1шт.

4

SBA015300614

SCREW

5шт.

5

SBA064500030

PLUG,3/8"

4шт.

6

SBA145996670

GASKET

1шт.

7

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

4шт.

8

SBA023100006

NUT

7шт.

9

SBA145216640

HOUSING

Thermostat

1шт.

10

SBA145996710

GASKET

1шт.

11

SBA145226340

COVER

Thermostat

1шт.

12

SBA145206220

THERMOSTAT,71 Degrees C (160 Degrees F)

1.875" OD x 2.2" H

1шт.

13

SBA145996051

GASKET

1шт.

14

SBA010800820

BOLT

2шт.

15

SBA064500030

PLUG,3/8"

3шт.

16

SBA012100655

STUD

2шт.

17

SBA011310655

BOLT,Hex, M6 x 55, Cl 8.8

2шт.

18

SBA145336051

HOSE

1шт.

19

SBA067100022

HOSE CLAMP

2шт.

20

SBA198487870

NIPPLE

1шт.

21

SBA145336620

PULLEY

North American Models

1шт.

21

SBA145337040

PULLEY

European Models

1шт.

22

47408215

FAN,5 Blades, 440mm OD

Cooling

1шт.

23

SBA185726481

PLATE

Not Illustrated

1шт.

24

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

Not Illustrated

1шт.

Выбрано товаров: 27
