Запчасти Case SV185 (90.105.CU[01]) - INSULATION, SOUNDPROOFING, CABEURO (90) - PLATFORM, CAB, BODYWORK AND DECALS

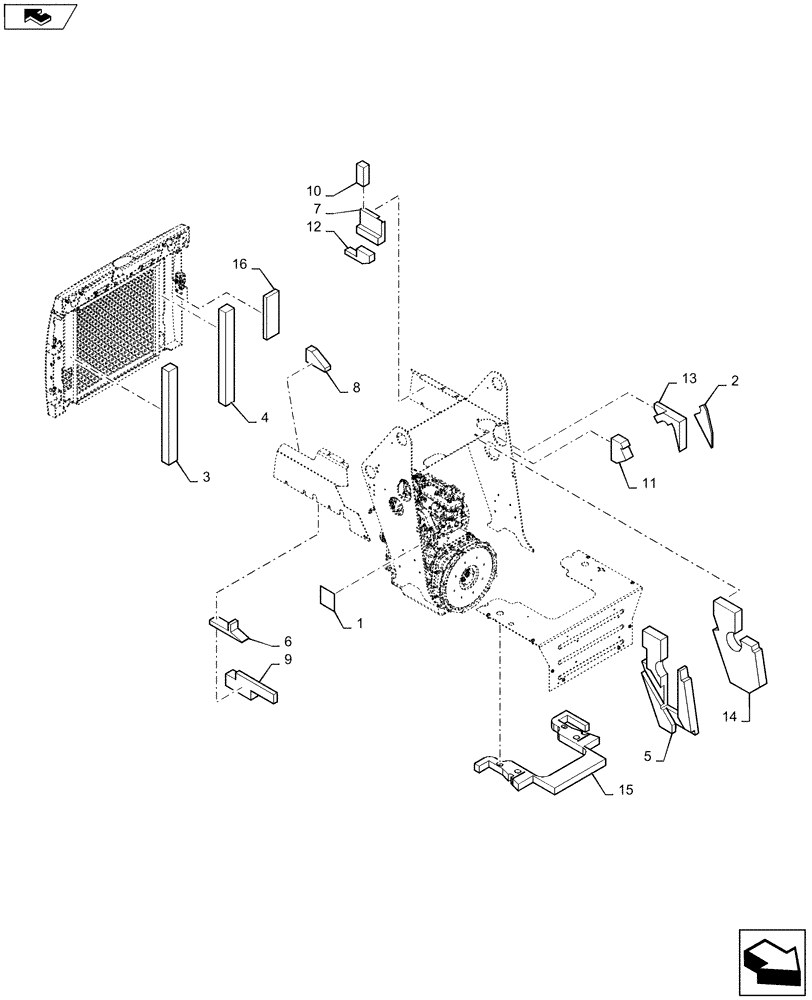

Схема запчастей Case SV185 - (90.105.CU[01]) - INSULATION, SOUNDPROOFING, CABEURO (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
7
6
16
14
8
15
10
4
11
5
13
9
2
home
12
1

Артикул

Название

Примечание

Количество

1

87353967

DECAL,LWA 101DB, 100mm x 110 mm

1шт.

2

84380909

INSULATION

Chassis LH

1шт.

3

84374184

FOAM INSULATION

Rear Door RH

1шт.

4

84374183

FOAM INSULATION

Rear Door LH

1шт.

5

84366323

FOAM INSULATION

Chassis RH

1шт.

6

84366324

FOAM INSULATION

Chassis RH

1шт.

7

84366325

FOAM INSULATION

Chassis LH

1шт.

8

84366326

FOAM INSULATION

Chassis RH

1шт.

9

84366327

FOAM INSULATION

Chassis RH

1шт.

10

84366329

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

Chassis LH

1шт.

11

84366331

FOAM INSULATION

Chassis LH

1шт.

12

84366332

FOAM INSULATION

Chassis LH

1шт.

13

84366333

FOAM INSULATION

Chassis LH

1шт.

14

84366334

FOAM INSULATION

Chassis Front LH

1шт.

15

84366352

FOAM INSULATION

Heal Plate Vertical

1шт.

16

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

Выбрано товаров: 16
