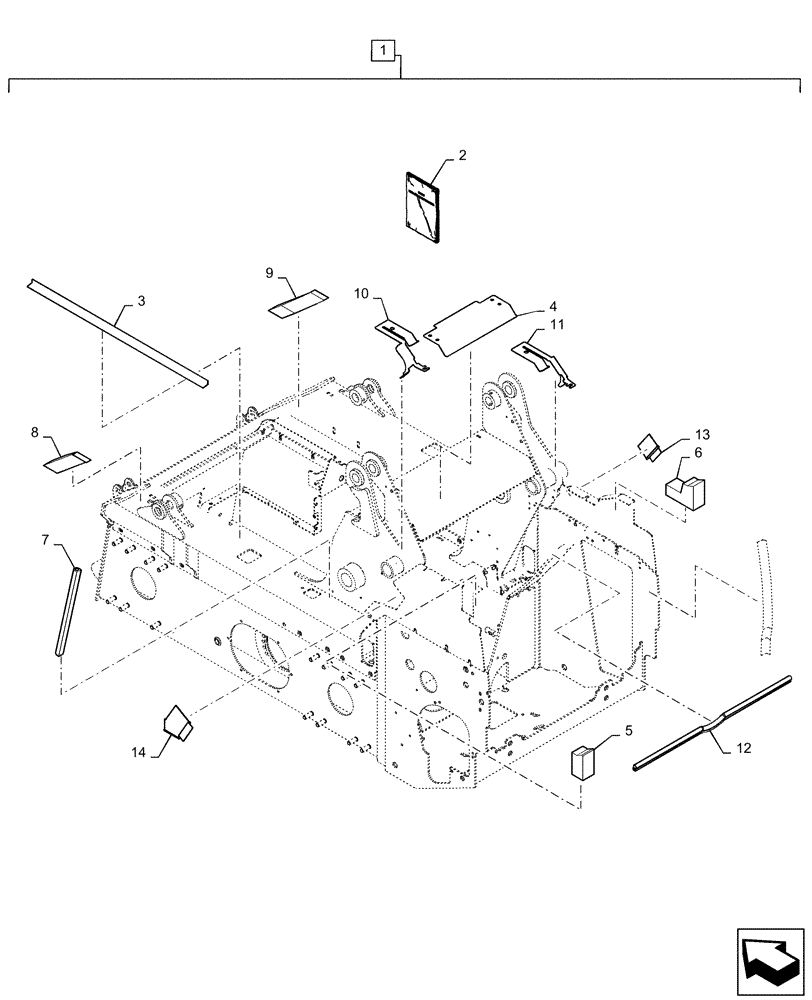

Запчасти Case SV185 (88.090.10) - DIA KIT, DEBRIS SOFT PARTS (88) - ACCESSORIES

1

47415569

KIT

Debris Soft Parts, Incl 2 - 14

1шт.

2

47643313

INSTRUCTION

1шт.

3

47479871

SEAL,Bulk, 30480mm L

use 3170mm from Bulk

1шт.

4

47367892

BRACKET

1шт.

5

47377967

FOAM INSULATION

LH

1шт.

6

47377968

FOAM INSULATION

RH

1шт.

7

84338534

SEAL,Bulk 30.48m

use 1565mm from Bulk

1шт.

8

84494851

FOAM INSULATION

LH Front Plate

1шт.

9

84494871

FOAM INSULATION

RH Front Plate

1шт.

10

84600030

BRACKET

RH

1шт.

11

84600031

BRACKET

LH

1шт.

12

84602176

SEAL

use 890mm from Bulk

1шт.

13

47362871

OUTER SHIELD

RH, Seal, Brush

1шт.

14

47362870

OUTER SHIELD

LH, Seal, Brush

1шт.
