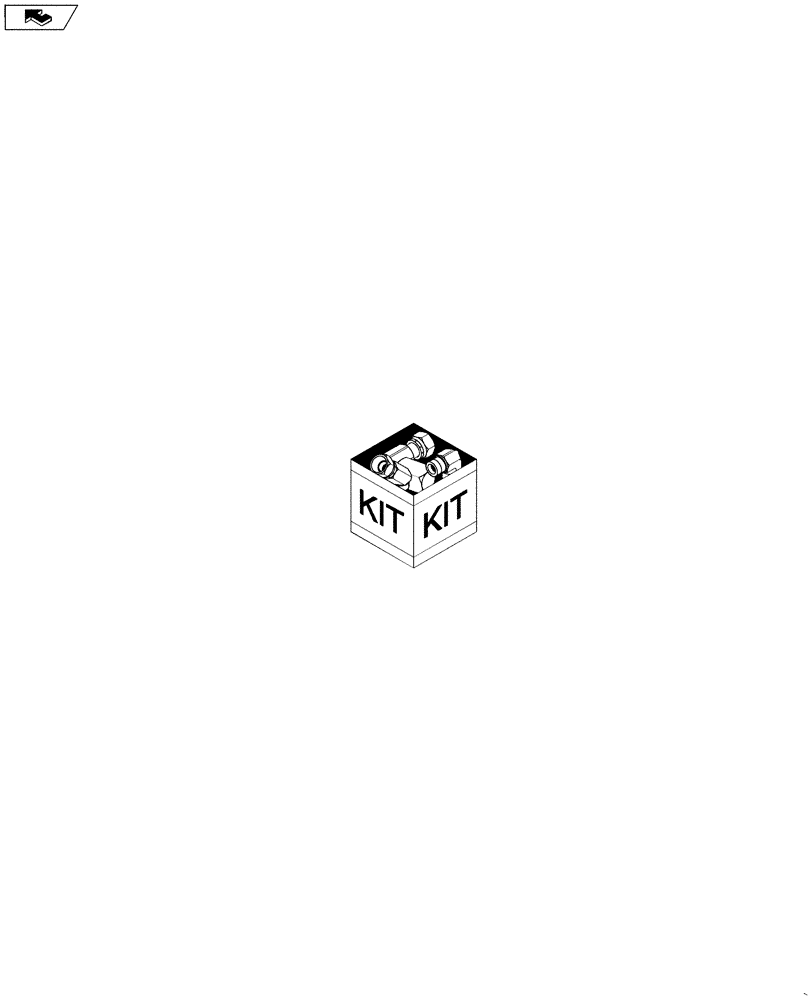

Запчасти Case SV185 (88.010.01) - DIA, KIT, ASPIRATOR (88) - ACCESSORIES

1

84579014

KIT

Aspirator, Incl 2 - 12

1шт.

2

84579015

INSTRUCTION

Sheet

1шт.

3

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

4

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

7

84137995

HOSE CLAMP,SAE #36 OD

Air Cleaner To Aspirator

1шт.

8

84312967

HOSE

Aspirator To Tailpipe

1шт.

9

84312972

HOSE

Air cleaner To Aspirator

1шт.

10

84359080

RIGID TUBE

Exhaust Tailpipe

1шт.

11

84576919

BRACKET

Aspirator Mounting

1шт.

12

406089A2

VALVE

Aspirator Check

1шт.
