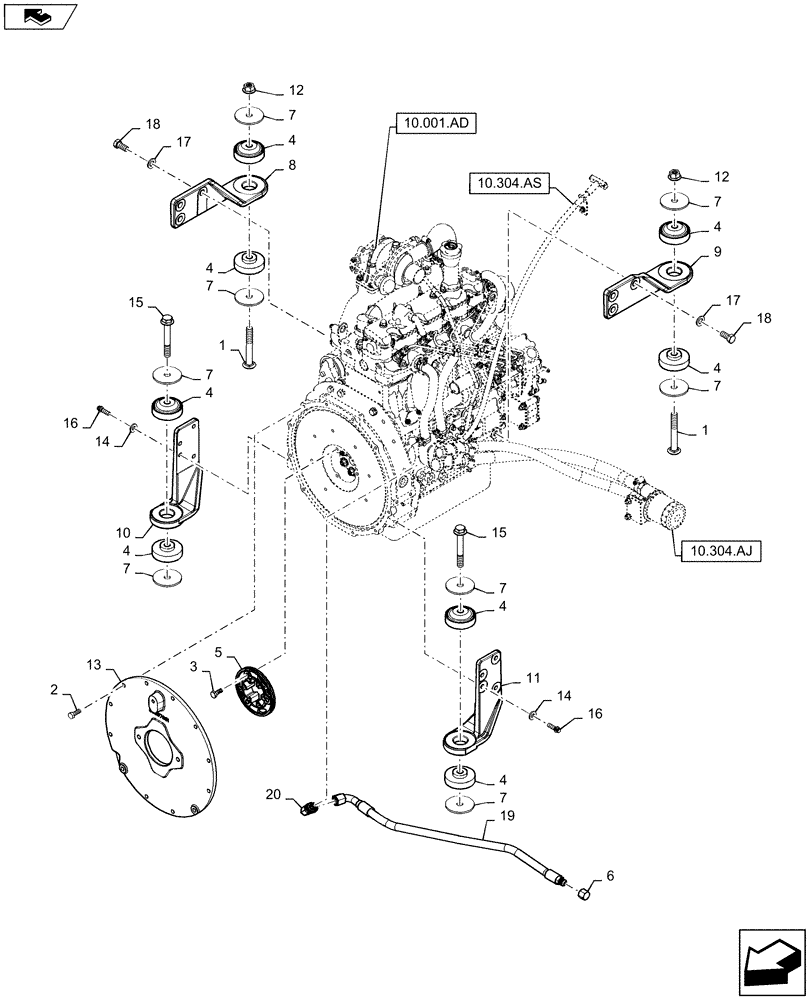

Запчасти Case SV185 (10.001.AK) - ENGINE MOUNT, SUPPORT (10) - ENGINE

1

300663

CARRIAGE BOLT,M16 x 2.0 x 120mm, Cl 8.8

2шт.

2

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

3

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

4

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

Enigne Mount

8шт.

5

87713744

PLASTIC

Coupler Plate

1шт.

6

262159

CAP,3/4" - 16 Fem JIC

1шт.

7

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

8шт.

8

84530879

MOUNT

1шт.

9

84530880

MOUNT

1шт.

10

84530883

MOUNT

, Years: -26-JAN-14

1шт.

11

84530885

MOUNT

, Years: -26-JAN-14

1шт.

12

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

13

86567000

COVER

Housing

1шт.

14

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

15

87015923

BOLT,M16 x 125.4mm, Cl 10.9

2шт.

16

87016486

12 PT SCREW,M10 x 1.5 x 40mm OAL, Cl 12.9

4шт.

17

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

6шт.

18

87357989

BOLT,M14 x 1.5 x 38.9mm OAL, Cl 8.8, Full Thd

6шт.

19

84276300

HOSE,12.7mm ID x 800mm L, SAE 100R16

Remote Oil Drain

1шт.

20

87691909

HYD TUBE

Remote Engine Oil Drain

1шт.
