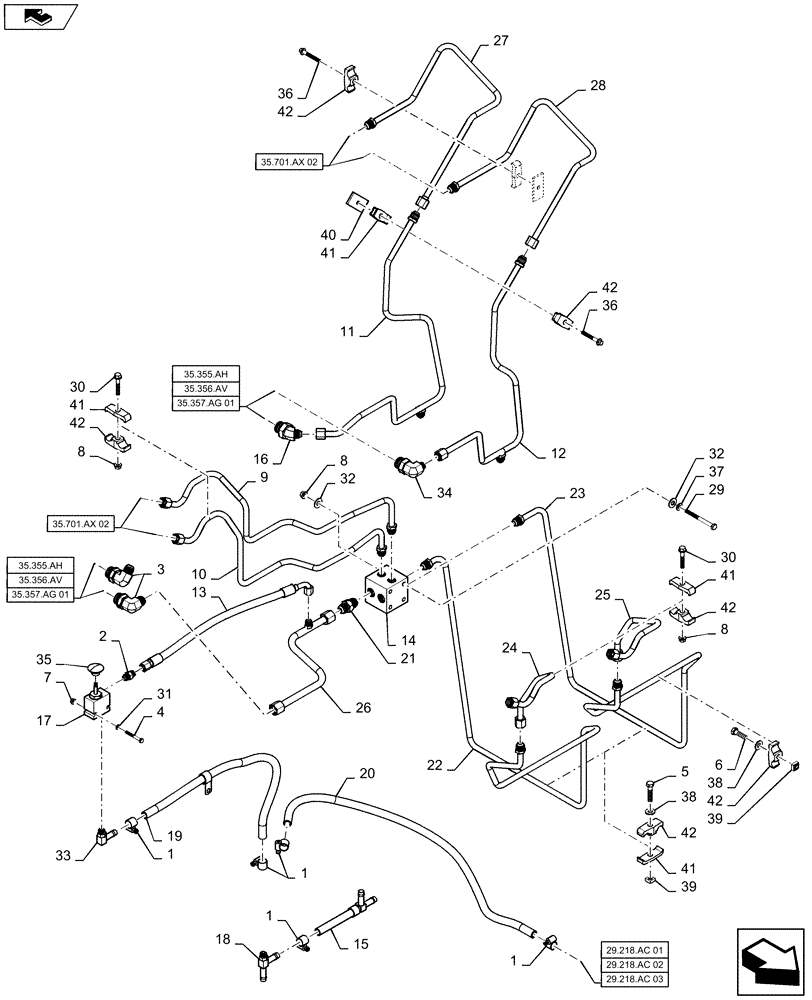

Запчасти Case SV185 (35.701.AX[01]) - LOADER VALVE PLUMBING (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

4

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

5

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

84178521

TUBE

Lower, Manifold to Right Arm

1шт.

10

84178523

TUBE

Lift, Manifold to Right Arm

1шт.

11

84181023

TUBE

Loader Valve to Right Arm

1шт.

12

84181026

TUBE

Loader Valve to Right Arm

1шт.

13

84201224

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

1шт.

14

84258823

HYDRAULIC MANIFOLD

Block

1шт.

15

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

16

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

1шт.

17

84294239

VALVE

Boom Override

1шт.

18

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1шт.

19

84299733

HOSE,12.7mm ID x 660mm L

1шт.

20

84299735

HOSE,12.7mm ID x 915mm L

1шт.

21

84373457

ORIFICE

4.5mm Directional

1шт.

22

84377532

TUBE

Lift, Manifold to Left Arm

1шт.

23

84377539

TUBE

Lower, Manifold to Left Arm

1шт.

24

84377541

TUBE

Lift, Left Fender

1шт.

25

84377543

TUBE

Lower, Left Fender

1шт.

26

84378484

RIGID TUBE

Lift, Valve to Manifold

1шт.

27

84479154

TUBE

Tip

1шт.

28

84479161

TUBE

Return

2шт.

29

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

30

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

31

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

32

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

33

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

1шт.

34

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

35

87522292

KNOB

Override Valve

2шт.

36

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

37

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

38

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

39

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

40

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

41

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

5шт.

42

D120679

CLAMP,Tube, 1/2"

6шт.
