Запчасти Case SV185 (35.100.AB) - HYDARULIC RETURN PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

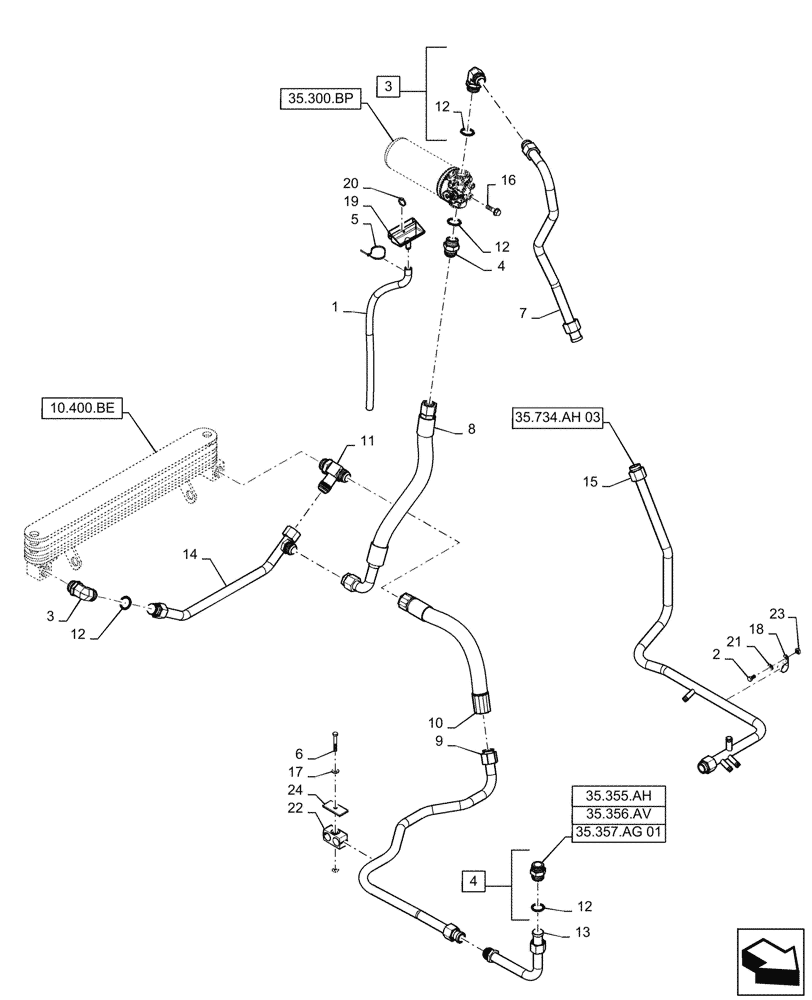

Схема запчастей Case SV185 - (35.100.AB) - HYDARULIC RETURN PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS
35.357.ag 01
14
8
22
11
13
1
21
10
17
19
12
12
12
9
3
20
2
4
6
4
3
5
16
15
24
12
18
7
23
35.300.bp
35.356.av
35.734.ah 03
35.355.ah
10.400.be

Артикул

Название

Примечание

Количество

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

2'

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 12

2шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 12

2шт.

5

646223

STRAP,8.0" L

Nylon Cable Tie

1шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

7

47447699

TUBE

Hydraulic Return Line

1шт.

8

47462048

HYDRAULIC HOSE,25.4mm ID x 665mm L, SAE 100R4

Oil Cooler Outlet

1шт.

9

84310715

RIGID TUBE

Loader Valve Outlet

1шт.

10

47685163

HOSE,25mm ID X 520mm L x 1-5/16" - 12 x 1-5/16" - 12

Loader Valve Outlet

1шт.

11

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.

13

84310722

RIGID TUBE

Loader Valve Outlet

1шт.

14

84375905

RIGID TUBE

Oil Cooler Outlet

1шт.

15

84536948

RIGID TUBE

Case Drain Manifold

1шт.

16

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

18

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

19

87455867

FUNNEL

Oil Filter

1шт.

20

87642915

CABLE TIE,198mm L

Nylon Cable Tie

1шт.

21

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

22

225529A1

CLAMP,Dual, 25.4mm ID

Clamp Tube

2шт.

23

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

24

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

Выбрано товаров: 24
