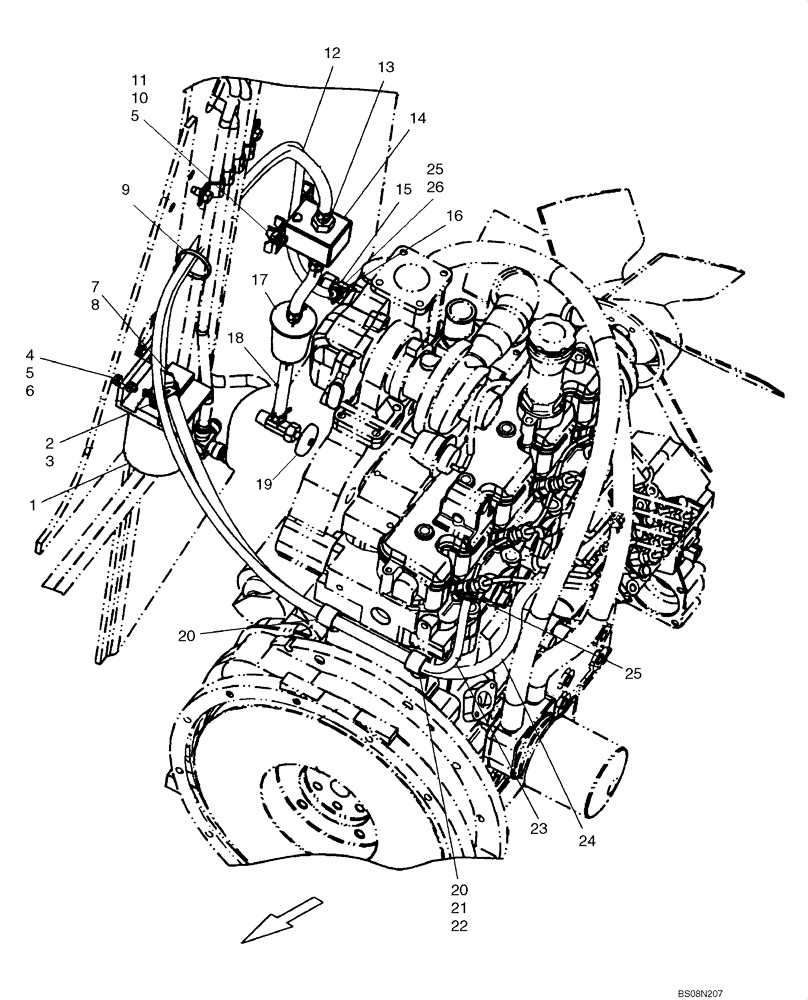

Запчасти Case SV185 (10.214.01[02]) - FUEL LINES - FILTER, PUMP (10) - ENGINE

1

87036043

FILTER HEAD

Incl. 1A, 1B

1шт.

1a

87039679

FUEL FILTER

Element; Not Illustrated Separately

1шт.

1b

87042231

FILTER HEAD

Not Illustrated Separately

1шт.

2

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

Stem; 5/16 ID x 7/16-20; Incl. 3

1шт.

3

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

87030561

NUT,M6 x 1, Cl 8

M6 x 1, Cl 8

2шт.

7

9829986

ELBOW

Stem; 90, 5/16 ID x 7/16-20; Incl. 8

1шт.

8

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

11

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6 x 1

2шт.

12

87440884

HOSE,7.94mm ID x 615mm L, SAE 30R7

615 (24 in)

1шт.

13

87436932

CLAMP,13.9mm - 15.5mm, Spring

15 mm

7шт.

14

87024903

FUEL PUMP

If Used

1шт.

14

87130988

Fuel Pump; If Used

1шт.

15

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

If Used

1шт.

15

87038402

Elbow; 90 Deg, 1/4" - 18 Male X 1/4" - 18 Female; If Used

1шт.

16

223593

FITTING,1/4" NPTF x 3/16" Hose Barb

1шт.

17

9611973

FUEL FILTER

1шт.

18

87440883

HOSE,7.94mm ID x 130mm L, SAE 30R7

130 (5 in)

2шт.

19

H434805

VALVE

Shut Off

1шт.

20

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

If Used

2шт.

21

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

23

87440886

HOSE,4.76mm ID x 1500mm L, SAE 30R7

1600 (63 in)

1шт.

24

87462775

FUEL HOSE,7.94 mm ID x 1065.0 mm, SAE 30R7

945 (37.2 in); If Used

1шт.

25

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2-3шт.

26

87436933

CLAMP,11.7mm - 13.9mm

12 mm

1шт.
