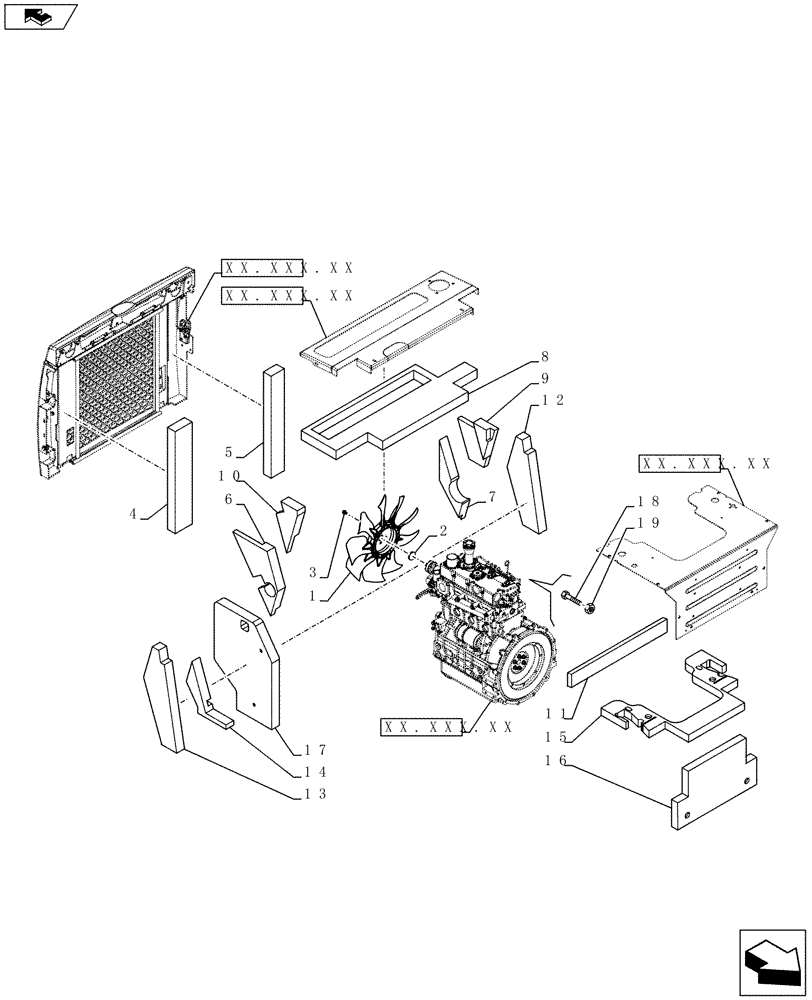

Запчасти Case SV185 (88.100.10[16]) - ENGINE ACCESSORIES EU/OPEN EU (SV185) (88) - ACCESSORIES

1

47426353

FAN,9 Blades, 450mm OD

Clockwise Pusher 450NA, Years: 01-APR-11-01-JUL-12

1шт.

1

47408215

FAN,5 Blades, 440mm OD

, Start Year: 01-JUL-12

1шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

16шт.

3

87023526

BOLT,M6 x 1.0 x 76.6mm, Cl 8.8

4шт.

4

84374542

FOAM INSULATION

RR Door LH

1шт.

5

84374541

FOAM INSULATION

RR Door LH

1шт.

6

84366356

FOAM INSULATION

RH Tower Upper

1шт.

7

84373800

FOAM INSULATION

Tower RR LH

1шт.

8

84374185

FOAM INSULATION

Panel Cover

1шт.

9

84373801

FOAM INSULATION

Tower RR LH

1шт.

10

84366354

FOAM INSULATION

RH Tower Upper

1шт.

11

84362125

FOAM INSULATION

Crossmember, used only with Open Cab

1шт.

12

84374164

FOAM INSULATION

Tower LH

1шт.

13

84373798

FOAM INSULATION

Tower RH

1шт.

14

84373799

FOAM INSULATION

Tower RH Lower

1шт.

15

84366353

FOAM INSULATION

Heel Plate Horizontal

1шт.

16

84366352

FOAM INSULATION

Heel Plate Vertical

1шт.

17

84374165

FOAM INSULATION

Counter Weight

1шт.

18

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

1шт.

19

86511444

FLANGE NUT,Hex, M6 x 1

1шт.

20

84372040

FOAM

Seat Pan; Used only with Open Cab, Not Illustrated

1шт.

21

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH, Not Illustrated, Next to Ref 5

1шт.
