Запчасти Case SV185 (82.300.AC[01]) - MANUAL COUPLER (SR175, SV185) BEFORE JAN 26, 2014 (82) - FRONT LOADER & BUCKET

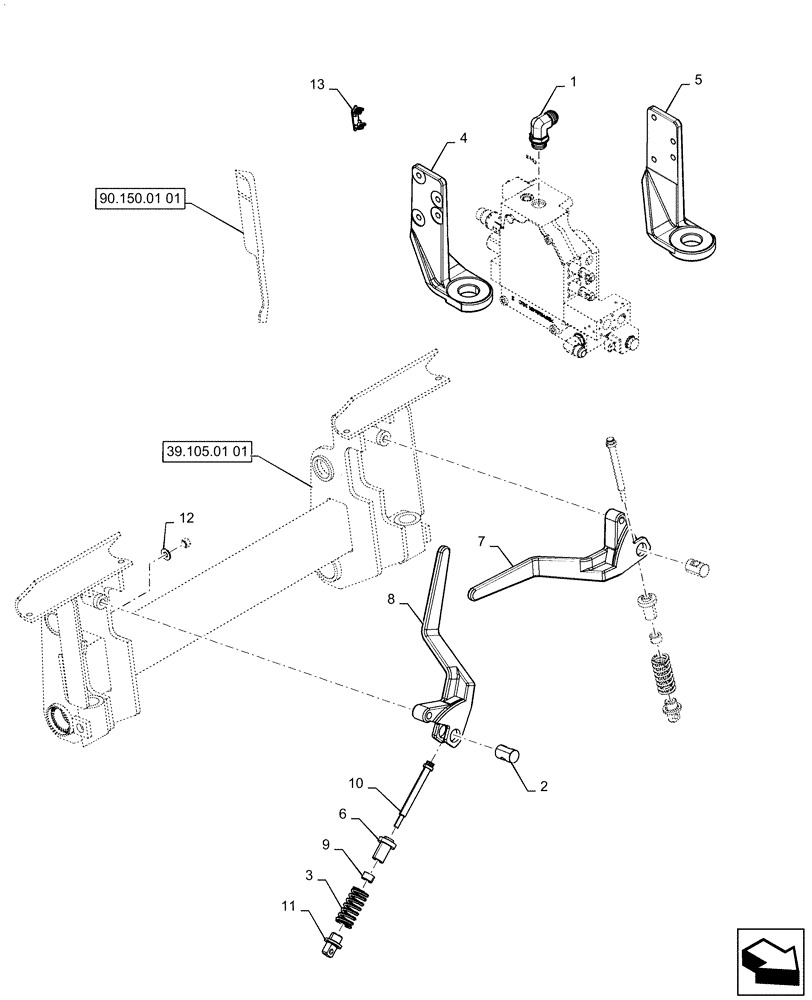

Схема запчастей Case SV185 - (82.300.AC[01]) - MANUAL COUPLER (SR175, SV185) BEFORE JAN 26, 2014 (82) - FRONT LOADER & BUCKET
7
8
5
6
2
1
11
3
13
39.105.01 01
90.150.01 01
4
10
12
9

Артикул

Название

Примечание

Количество

1

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

2

9829733

PIN,25.4mm OD x 39mm L

2шт.

3

84218843

COMPRESSION SPRING,36.6mm OD x 101.6mm L

2шт.

4

84530883

MOUNT

RH

1шт.

5

84530885

MOUNT

LH

1шт.

6

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

7

86633195

HANDLE

LH Painted, CE Gray

1шт.

8

86633196

HANDLE

RH Painted, CE Gray

1шт.

9

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

2шт.

10

87533223

12 PT SCREW,3/8" - 16 x 5", Gr 8

2шт.

11

87579303

PIN,34.92mm OD x 43.6mm L

2шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

13

126844A1

PLUG,1.427” x .62” , Plastic

Cover

1шт.

Выбрано товаров: 13
