Запчасти Case SV185 (55.100.01[01]) - ENGINE - ELECTRICAL (55) - ELECTRICAL SYSTEMS

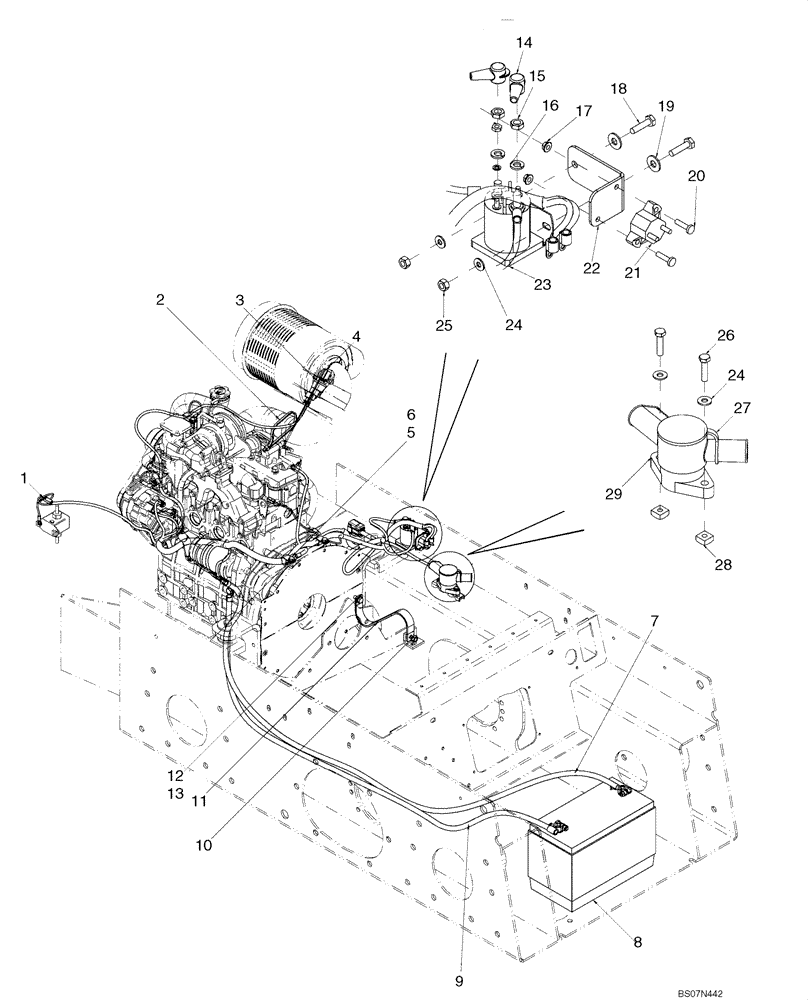

Схема запчастей Case SV185 - (55.100.01[01]) - ENGINE - ELECTRICAL (55) - ELECTRICAL SYSTEMS
19
22
12
24
7
13
5
9
23
15
24
28
25
17
1
26
6
27
18
20
2
29
21
10
16
8
11
14
3

Артикул

Название

Примечание

Количество

1

87716173

HARNESS

Engine Harness, ISM; If Used

1шт.

1

87482504

HARNESS

Engine Harness, ISM

1шт.

1a

84121323

HARNESS

Alternator Backfeed Harness; See Fig 04-05A; Not Illustrated

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

3

293797A1

RESTRICTION SWITCH

Air

1шт.

4

84015293

ELBOW,90 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

6

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

87446434

CABLE ASSY.

Battery Cable, Positive

1шт.

8

87665227

WET BATTERY

Battery, 1125 CCA

1шт.

9

87713283

NEG BATTERY CABLE

1шт.

10

86500689

NUT,M10 x 1.5, Cl 10

1шт.

11

512306

GROUND CABLE

1шт.

12

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

13

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

87461743

BOOT

2шт.

15

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

16

80681

LOCK WASHER,5/16"

2шт.

17

80043416

NUT,M5

2шт.

18

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

19

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

20

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

21

9843910

CIRCUIT BREAKER,50A

Circuit Breaker, 50A

1шт.

22

87447727

ANGLE

1шт.

23

87406968

SOLENOID SWITCH

1шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

26

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

27

87630125

BOOT

1шт.

28

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

29

87630124

POST

1шт.

Выбрано товаров: 31
