Запчасти Case SV185 (55.015.AB[01]) - ENGINE, ELECTRICAL (SR175,SV185) (55) - ELECTRICAL SYSTEMS

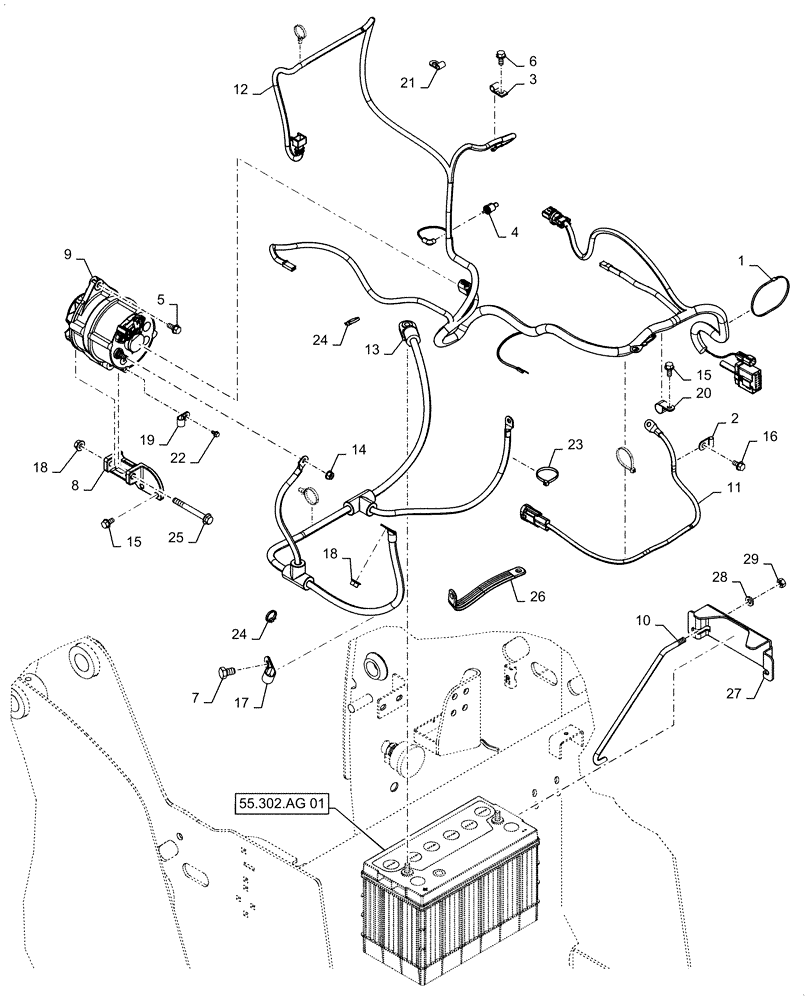

Схема запчастей Case SV185 - (55.015.AB[01]) - ENGINE, ELECTRICAL (SR175,SV185) (55) - ELECTRICAL SYSTEMS
18
20
24
5
27
4
55.302.ag 01
10
25
7
2
9
12
15
21
19
26
1
15
13
16
29
14
22
17
24
8
6
23
3
18
28
11

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

2

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

4

3917490

TEMPERATURE SENDER

Water

1шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

15976921

BOLT,Hex, M14 x 1.5 x 22mm, Cl 8.8, Full Thd

1шт.

8

47616756

BRACKET

Alternator, Mounting

1шт.

9

84281043

ALTERNATOR,12V, 120A, W/ Pulley

1шт.

9

84281043R

REMAN-ALTERNATOR

1шт.

9

84281043C

CORE-ALTERNATOR

Return Number

1шт.

10

47505880

HOOK

Battery Tie Down

2шт.

11

84306339

ELECTRIC CABLE,644mm L

1шт.

12

84375312

WIRE HARNESS

Engine, ISM

1шт.

13

84298940

POS BATTERY CABLE

1333mm L, Years: -02-OCT-12

1шт.

13

84605004

POS BATTERY CABLE

1333mm L, Start Year: 03-OCT-12

1шт.

14

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

16

86512520

BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd

1шт.

17

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

18

86619802

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

19

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

20

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

21

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

22

86639263

BOLT,Hex, M5, Cl 8

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

24

87642915

CABLE TIE,198mm L

3шт.

25

87681204

BOLT,Hex, M10 x 90mm, Cl 10.9

1шт.

26

D140369

GROUND STRAP,260mm L

Ground Strap

1шт.

27

84420303

STRAP

Battery Mount

1шт.

28

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

29

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

Выбрано товаров: 32
