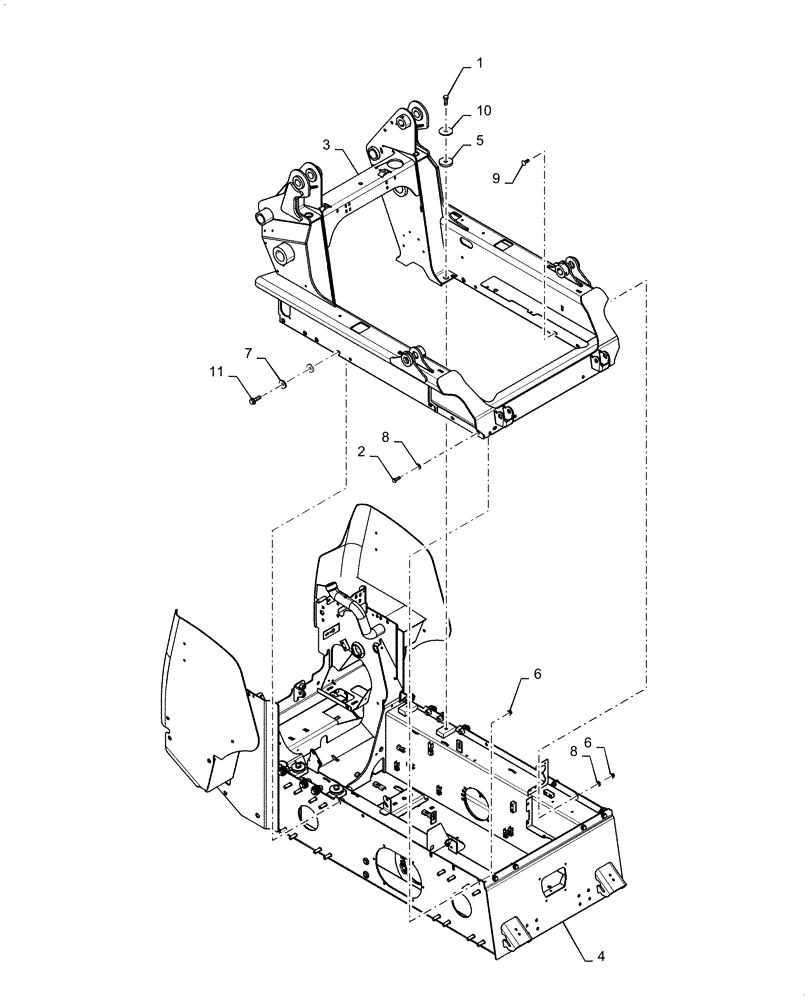

Запчасти Case SV185 (39.100.AB[01]) - CHASSIS (SV185) BEFORE FEB 6, 2012 (39) - FRAMES AND BALLASTING

1

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

2

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

9шт.

3

47381763

FRAME

Chassis, Upper

1шт.

4

84200513

FRAME

Chassis

1шт.

5

84298254

PLATE

Rear Mount

4шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

7

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

16шт.

8

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

10шт.

9

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

1шт.

10

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

4шт.

11

87698849

BOLT,M16 x 50mm, Cl 10.9

8шт.
