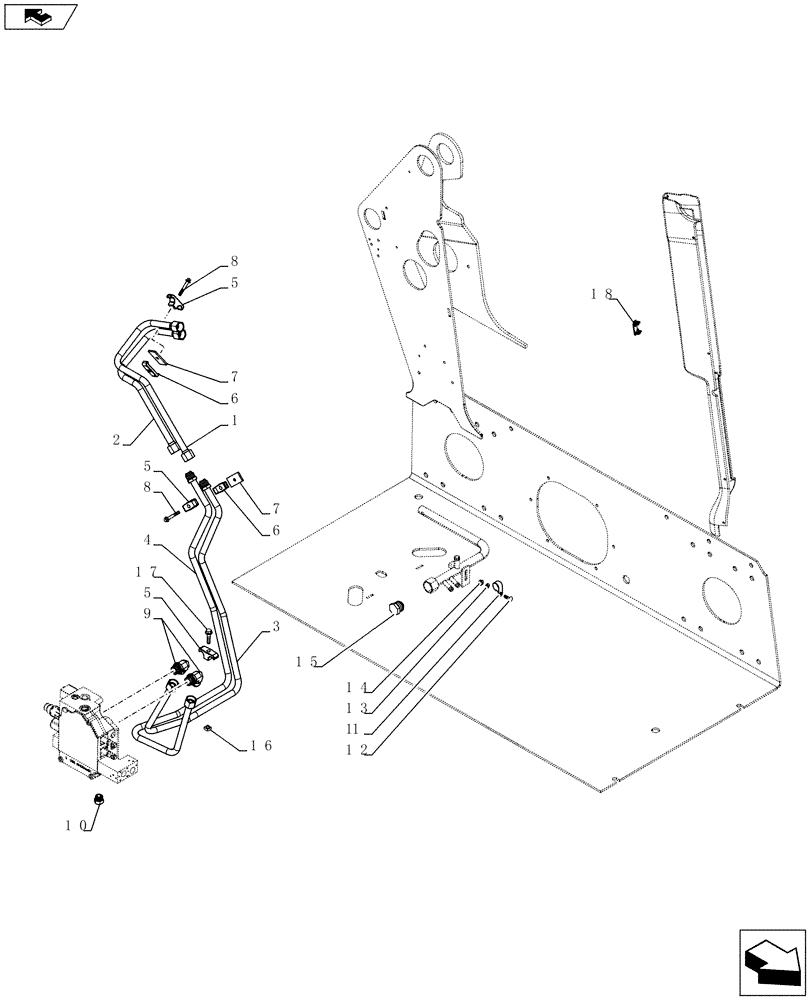

Запчасти Case SV185 (35.734.AH[03]) - AUX HYD, STD, CHASSIS PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

1

84421500

HYD TUBE,19.05mm OD

Aux LH Tower

1шт.

2

84421502

HYD TUBE,19.05mm OD

Aux LH Tower

1шт.

3

84377504

TUBE,19.05mm OD

Aux, Ldr Vlv to Lft Tower

1шт.

4

84377506

TUBE,19.05mm OD

Aux, Ldr Vlv to Lft Tower

1шт.

5

D124301

CLAMP,3/4" ID

Tube, 3/4

3шт.

6

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

2шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar Clamp Top

2шт.

8

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

M8x55

2шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

10

86512512

PLUG,7/8" - 14 ORB

1шт.

11

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

13

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

9790527

PLUG,1-5/16" - 12 JIC

1шт.

16

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

17

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

18

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1шт.
