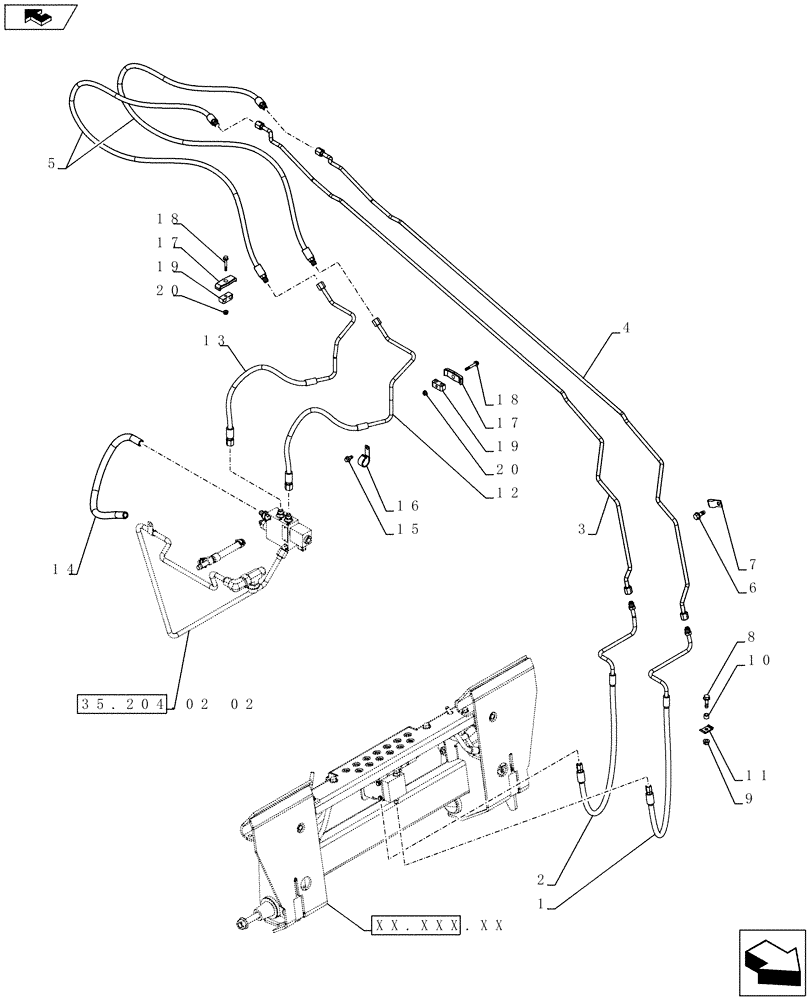

Запчасти Case SV185 (35.734.AH[02]) - HYDRAULIC COUPLER, ARM PLUMBING (SV185) (35) - HYDRAULIC SYSTEMS

1

84351545

HYD TUBE

Assembly, Serial Range: Step-Coupler

1шт.

2

84351547

HYD TUBE

Assembly, Serial Range: Step-Coupler

1шт.

3

84396808

HYD TUBE

Assembly, Coupler

1шт.

4

84396810

HYD TUBE

Assembly, Coupler

1шт.

5

84284644

HOSE ASSY.,6.35mm ID x 1680mm L, SAE 100R17

Hydraulic Coupler

2шт.

6

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

7

605025

CLAMP,3/8", Coated, 3/8" Bolt

1шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

10

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

Spacer

1шт.

11

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

Tube

1шт.

12

84281774

HYD TUBE

Assembly, Coupler

1шт.

13

84281772

HYD TUBE

Assembly, Coupler

1шт.

14

84292314

HOSE,12.7mm ID x 460mm L

Hydraulic Coupler - Drain

1шт.

15

87752074

SCREW,HWH, M8 x 1.25 x 16mm

Tapping

1шт.

16

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

17

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

18

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

19

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

2шт.

20

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.
