Запчасти Case SV185 (35.723.AA[01]) - BUCKET CYLINDER (SV185) (35) - HYDRAULIC SYSTEMS

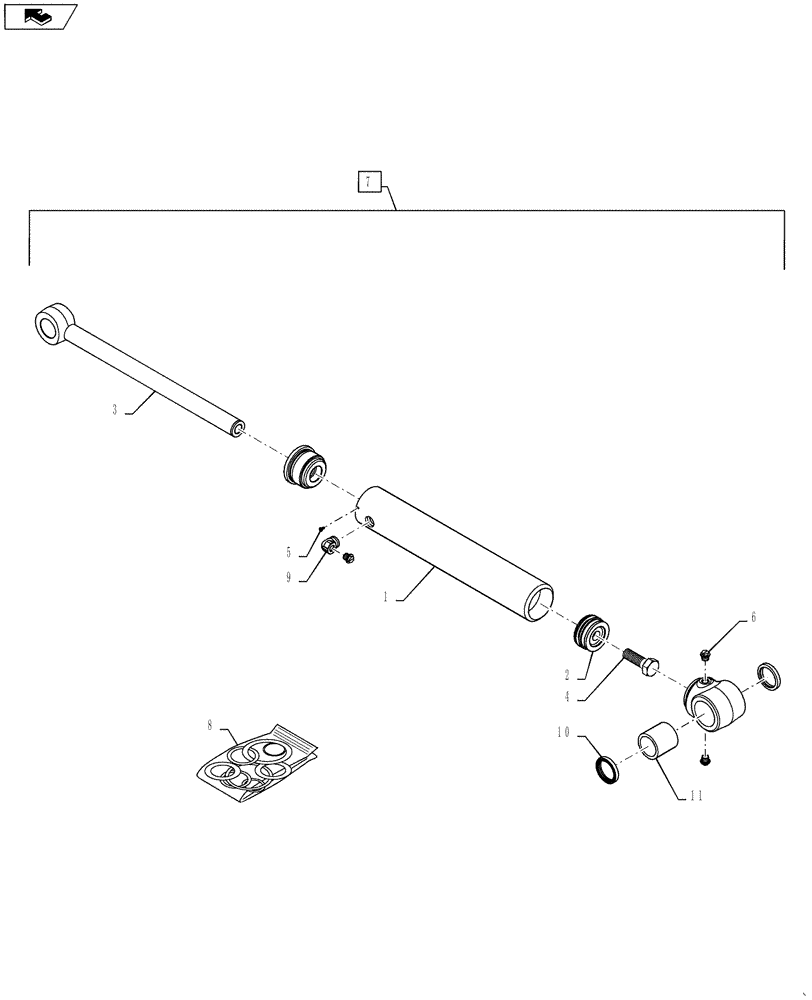

Схема запчастей Case SV185 - (35.723.AA[01]) - BUCKET CYLINDER (SV185) (35) - HYDRAULIC SYSTEMS
2
10
6
11
3
1
5
9
4
8
home
7

Артикул

Название

Примечание

Количество

7

84290573

LIFT CYLINDER,Double Acting, 34.9mm Rod, 410mm Stroke

Hydraulic, Assembly, Bucket, Tan, Incl. 1-6

1шт.

1

84296084

TUBE,63.5mm Bore Dia

Hydraulic, W

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston, W

1шт.

4

86982436

SPECIAL BOLT,SEMS Hex, 7/8" - 14 x 2 - 1/2"

SEMS/A, 7/8 X 2.50

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

86625122

PLUG,HWH, 9/16" - 18 x 0.69" Incl NSS O-Ring

3шт.

8

84480956

SEAL KIT

Cylinder Repair Kit

1шт.

9

84268828

90 ELBOW

Fitting

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper

2шт.

11

84254659

BUSHING,44.63mm ID x 57.28mm OD x 57mm L

2.25 OD X 1.75 ID X 2.2

1шт.

12

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

Rod Eye (Not Shown)

2шт.

Выбрано товаров: 12
