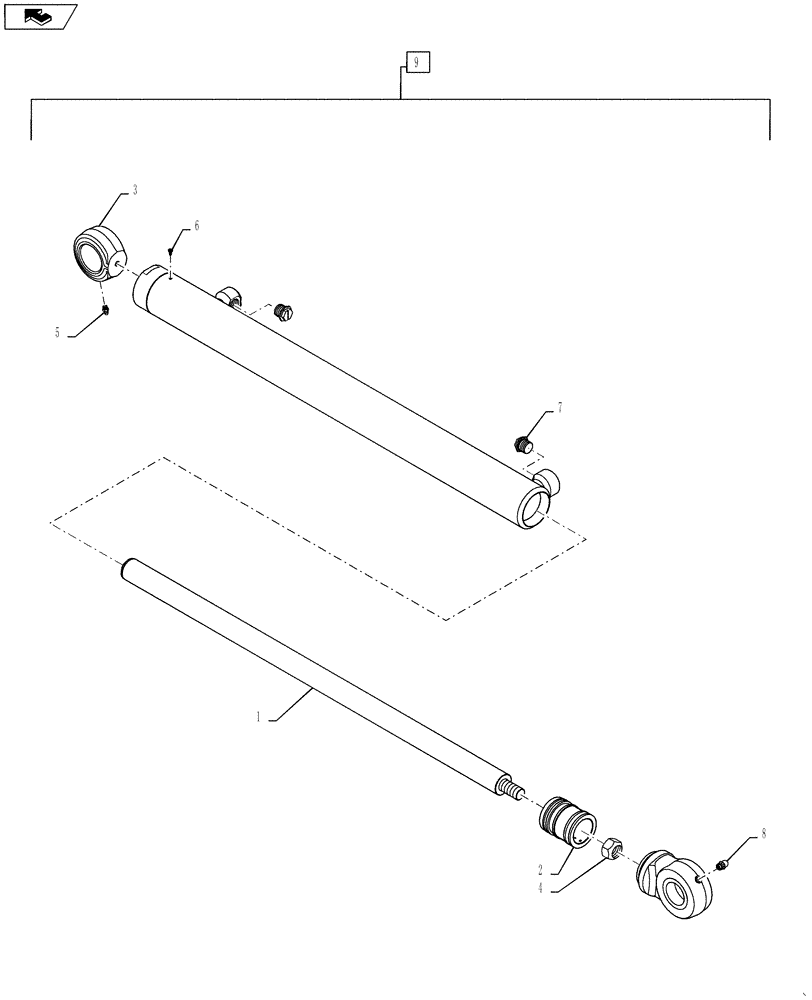

Запчасти Case SV185 (35.701.CB[02]) - HYDRAULIC LIFT CYLINDER, ASN NBM443465 NA, NCM452139 EU (SV185) (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Tube, W

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland, 63.5 X 44.4

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, W, 44.4 DIA

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16, w/O-Ring

2шт.

8

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

9

84543464

CYLINDER,Double Acting, 44.4mm Rod, 681mm Stroke

RH, Lift, Power Tan, Incl. 1-8

1шт.

9

84543464R

REMAN-HYD CYLINDER

SV185 SKID STEER LOADER, ASN NBM443465 NA, RH, Lift, Power Tan (4/11-)

1шт.

9

84543464C

CORE-HYD CYLINDER

Return Number

1шт.

9

84543463

CYLINDER,Double Acting, 44.4mm Rod, 681mm Stroke

LH, Lift, Power Tan, Incl. 1-8

1шт.

9

84543463R

REMAN-HYD CYLINDER

SV185 SKID STEER LOADER, LH, Lift, Power Tan, ASN NBM443465 NA (4/11-)

1шт.

9

84543463C

CORE-HYD CYLINDER

Return Number

1шт.

10

84480921

KIT

(Not Shown) Cylinder Repair Kit

1шт.
