Запчасти Case SR270 (29.218.020[02]) - 2-SPEED MOTOR (29) - HYDROSTATIC DRIVE

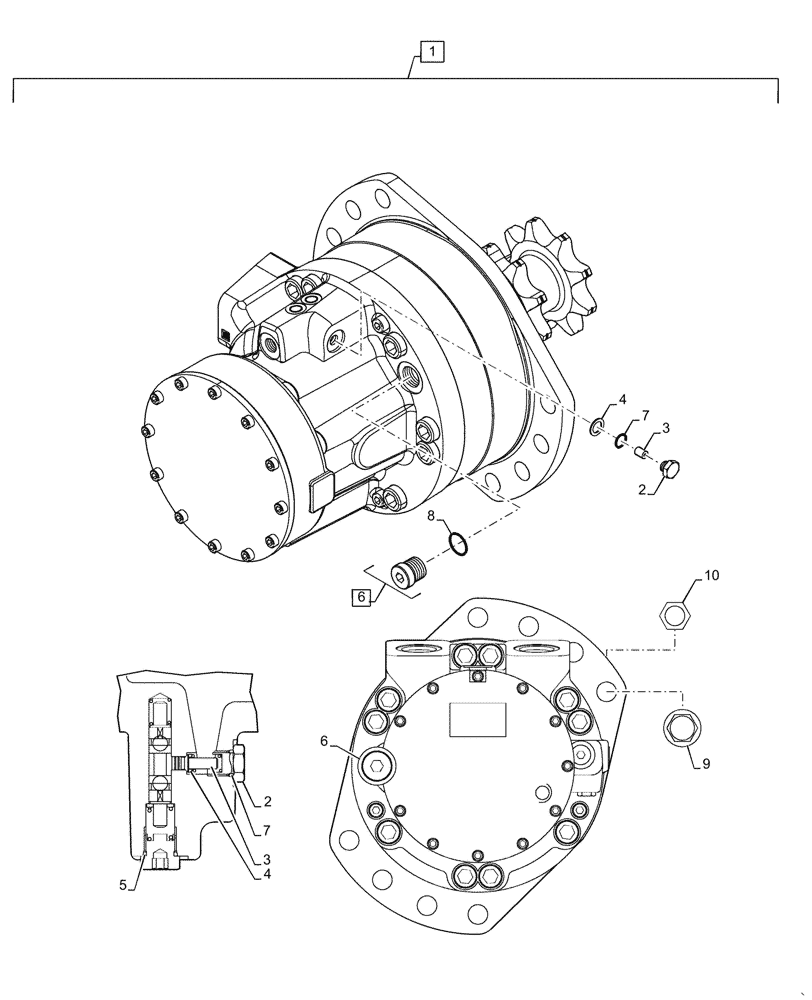

Схема запчастей Case SR270 - (29.218.020[02]) - 2-SPEED MOTOR (29) - HYDROSTATIC DRIVE
3
10
8
7
2
5
3
6
1
6
9
2
4
7
4

Артикул

Название

Примечание

Количество

1

84565752

HYDRAULIC MOTOR,Drive, 470 CC

2-Speed, Incl 2 - 8

2шт.

1

84565752R

REMAN-HYD MOTOR,Drive, 470 CC

2-Speed

2шт.

1

84565752C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

87042933

POPPET,Plug, 7/16" SAE

1шт.

3

87042931

POPPET,RV 1.7 Orifice

1шт.

4

84569223

SHIM,5.5mm ID x 8mm OD x 1.3mm Thk

Flushing Poppet, 20 Bar

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 8

1шт.

7

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

87675533

BOLT,M16 x 75.4mm, Cl 10.9

12шт.

10

86512555

NUT,M16 x 2, Cl 10

12шт.

Выбрано товаров: 12
