Запчасти Case SR270 (29.204.010[02]) - 2-SPEED, BRAKE VALVE LINES (29) - HYDROSTATIC DRIVE

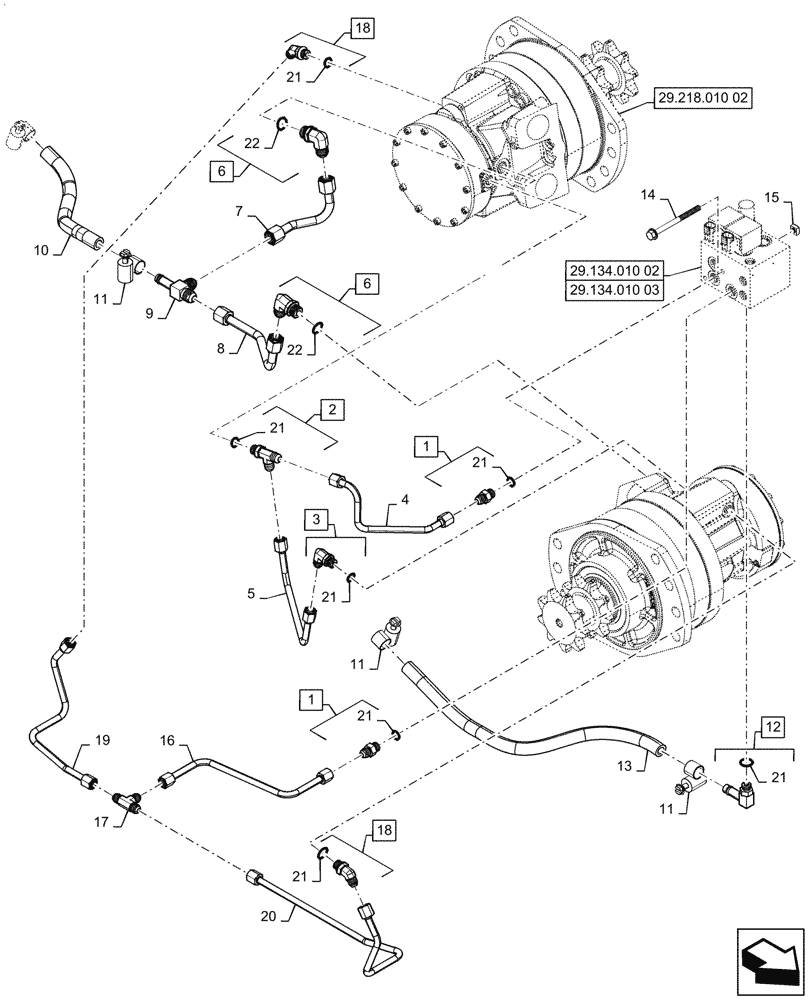

Схема запчастей Case SR270 - (29.204.010[02]) - 2-SPEED, BRAKE VALVE LINES (29) - HYDROSTATIC DRIVE
29.134.010 03
19
13
2
12
15
22
17
11
6
21
8
10
7
3
14
21
18
21
21
6
21
22
21
9
4
20
1
5
1
18
11
16
21
11
29.134.010 02
29.218.010 02

Артикул

Название

Примечание

Количество

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

2шт.

2

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 21

1шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 21

1шт.

4

47984526

HYD TUBE

LH, Brake, 2-Speed Supply

1шт.

5

47971304

HYD TUBE

RH, Brake, 2-Speed Supply Jumper

1шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 22

2шт.

7

47977911

HYD TUBE

LH, Case Drain

1шт.

8

47971344

HYD TUBE

RH, Case Drain

1шт.

9

47974961

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 1/2" Barb

1шт.

10

47982001

HOSE,12.7mm ID x 301mm L

Case Drain

1шт.

11

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

12

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 21

1шт.

13

47983609

HOSE,12.7mm ID x 505mm L

Case Drain

1шт.

14

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

15

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

16

47979677

HYD TUBE

2-Speed Common

1шт.

17

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

18

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 21

2шт.

19

47979674

HYD TUBE

Rear, 2-Speed

1шт.

20

47979752

HYD TUBE

Front, 2-Speed

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Выбрано товаров: 22
