Запчасти Case SR270 (25.450.020) - CHAIN DRIVE AXLE (25) - FRONT AXLE SYSTEM

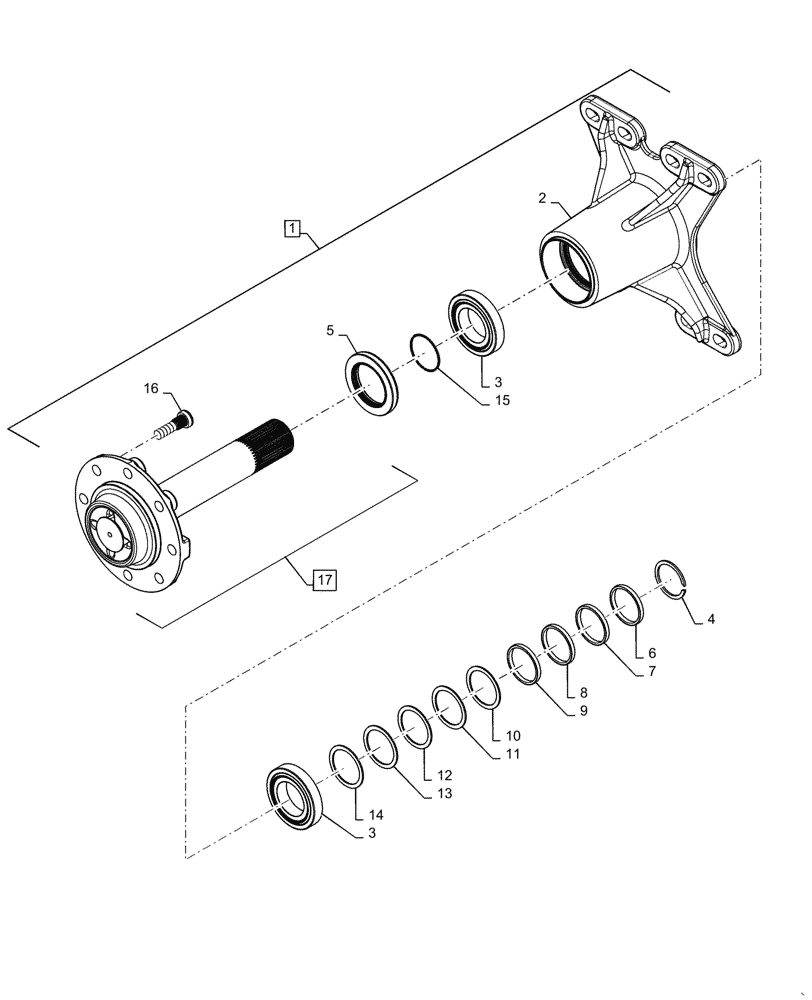

Схема запчастей Case SR270 - (25.450.020) - CHAIN DRIVE AXLE (25) - FRONT AXLE SYSTEM
14
4
5
13
10
3
9
15
16
11
12
6
8
17
1
7
2
3

Артикул

Название

Примечание

Количество

1

84596297

4WD AXLE ASSY

Axle Shaft Assy, Gray, Incl 2 - 17

1шт.

2

84354066

AXLE HOUSING

Gray

1шт.

3

496536C1

TAPERED BEARING,61.91mm ID x 110mm OD x 22mm W

2шт.

4

84239398

SNAP RING,M61.9, Ext

Heavy

1шт.

5

341841A2

OIL SEAL,76.2mm ID x 109.95mm OD x 14mm Thk

Axle

1шт.

6

84499772

SPACER,62.25mm ID x 69mm OD x 5.3mm L

1шт.

7

84499774

SPACER,62.25mm ID x 69mm OD x 5.8mm L

1шт.

8

84499778

SPACER,62.25mm ID x 69mm OD x 6.3mm L

1шт.

9

84499784

SPACER,62.25mm ID x 69mm OD x 6.8mm L

1шт.

10

84404996

SHIM,62.25mm ID x 76.2mm OD x 1.58mm Thk

1шт.

11

84405003

SHIM,62.25mm ID x 76.2mm OD x 1.68mm Thk

1шт.

12

84393466

SHIM,62.25mm ID x 76.2mm OD x 1.78mm Thk

1шт.

13

84393470

SHIM,62.25mm ID x 76.2mm OD x 1.88mm Thk

1шт.

14

84393472

SHIM,62.25mm ID x 76.2mm OD x 1.98mm Thk

1шт.

15

70929921

O-RING,-036, 70 Duro, 2.364" ID x .070" Thk

Axle

1шт.

16

84249319

STUD,Wheel, M16 x 2 x 60mm, Cl 10.9

8шт.

17

84595792

HUB

Shaft Assy, Incl 16

1шт.

Выбрано товаров: 17
