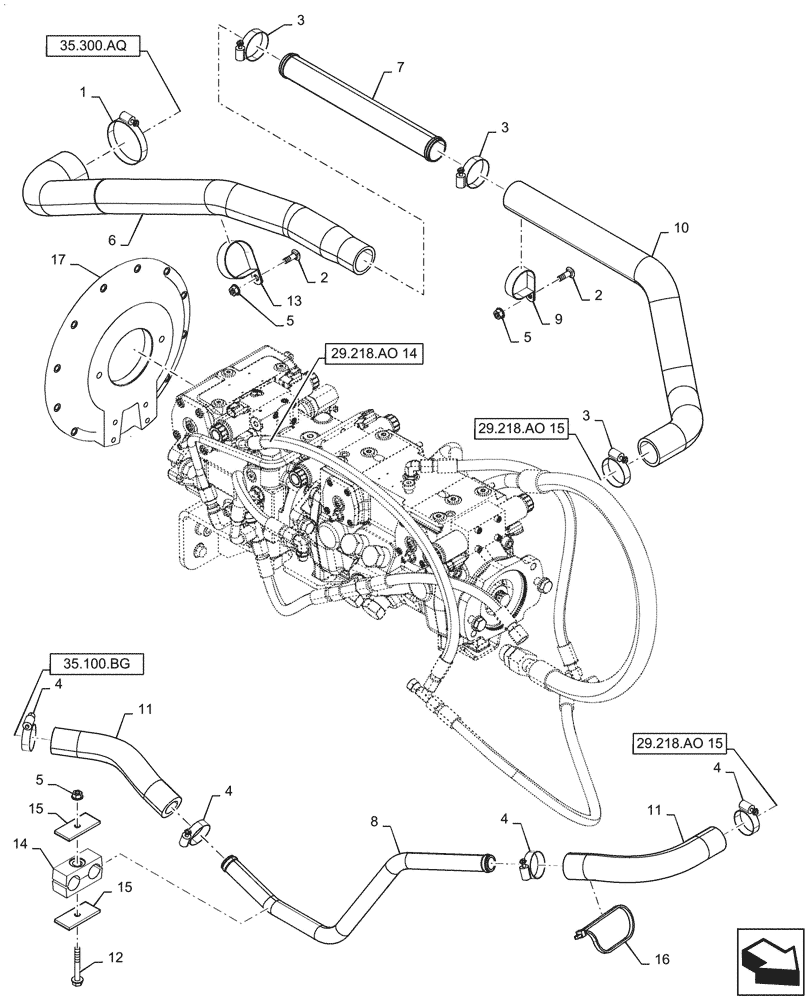

Запчасти Case SR270 (29.204.AB[06]) - HYDROSTATIC PUMP, SUPPLY LINES, EHF (29) - HYDROSTATIC DRIVE

1

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

2

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

3шт.

4

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

6

47648672

HOSE,63.5mm ID x 714mm L

Gear Pump Suction

1шт.

7

47707350

TUBE,38.10mm OD x 330mm L

1шт.

8

47733682

TUBE

Charge Supply

1шт.

9

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

84349297

HOSE,38mm ID x 684mm L

Gear Pump Suction

1шт.

11

84374131

HYDRAULIC HOSE,25.4mm ID x 275mm L, SAE 100R1

Charge Supply

2шт.

12

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

13

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

14

1546028C1

CLAMP,25.4mm ID x 82mm L

1шт.

15

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

17

47659211

COVER

Flywheel, EHF

1шт.
