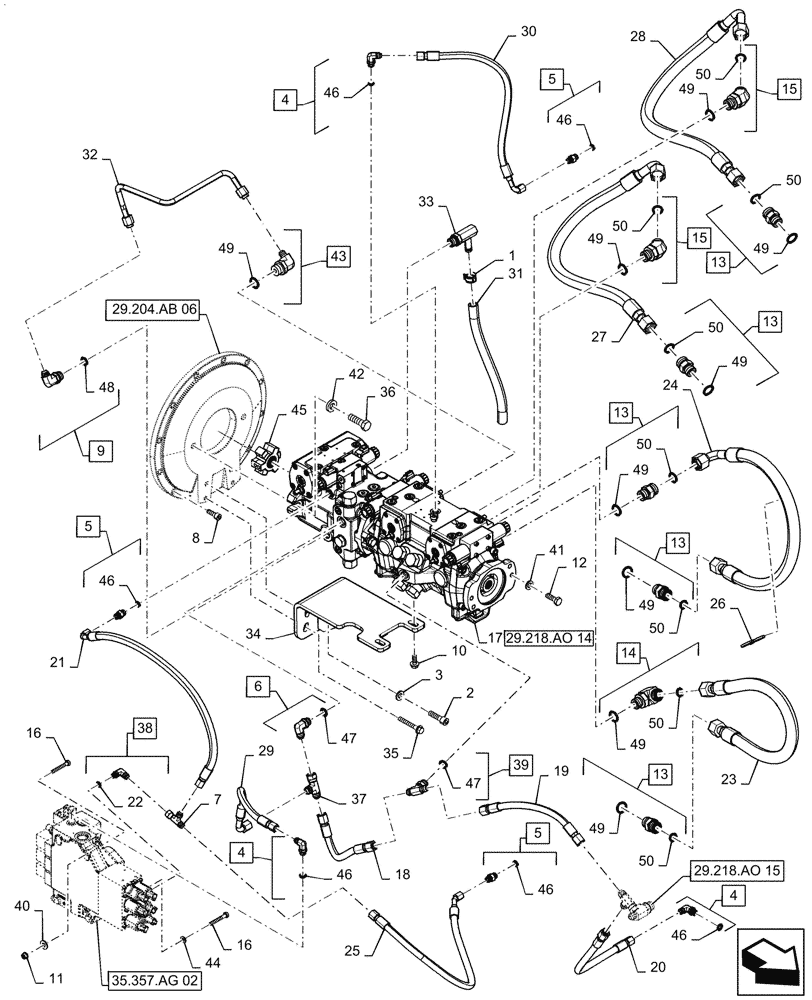

Запчасти Case SR270 (29.204.AB[05]) - HYDROSTATIC PUMP, DRIVE LINES, EHF (29) - HYDROSTATIC DRIVE

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

2шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 46

3шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 46

3шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 47

1шт.

7

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

10шт.

9

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 48

1шт.

10

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

12

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

13

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 49, 50

5шт.

14

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 49, 50

1шт.

15

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 49, 50

2шт.

16

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

17

47374659

HYDROSTATIC PUMP,Tandem, 46 CC

46 CC, EHF Tandem

1шт.

18

47645579

TUBE,10mm ID x 313mm L

1шт.

19

47645585

HOSE,10mm ID x 330mm L

Tandem Pump to EHF Pump

1шт.

20

47645586

HOSE,10mm ID x 527mm L

EHF Pump to Brake Valve

1шт.

21

47647454

HOSE,10mm ID x 733mm L

Loader Valve Interlock

1шт.

22

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Flywheel

1шт.

23

47778304

HYDRAULIC HOSE,19mm ID x 785mm L

Tandem Pump to LH Hydrostatic Motor

1шт.

24

47985827

HYDRAULIC HOSE,19mm ID x 900mm L, SAE 100R19

Tandem Pump to LH Hydrostatic Motor

1шт.

25

48019269

HYDRAULIC HOSE,10mm ID x 870mm L

1шт.

26

82013031

CABLE TIE,193mm L

1шт.

27

84258849

FLEXIBLE HOSE,19.05mm ID x 821mm L, SAE 100R19

Tandem Pump to RH Hydrostatic Motor

1шт.

28

84258850

FLEXIBLE HOSE,19.05mm ID x 846mm L, SAE 100R19

Tandem Pump to RH Hydrostatic Motor

1шт.

29

84356615

HYDRAULIC HOSE,9.53mm ID x 402mm L, SAE 100R17

Charge Supply to Loader Valve

1шт.

30

84356618

HYDRAULIC HOSE,9.53mm ID x 592mm L, SAE 100R17

Tandem Pump to Brake Valve

1шт.

31

84356619

HYDRAULIC HOSE,15.88mm ID x 335mm L

EHF Drain

1шт.

32

84387079

HYD TUBE,12.7mm OD

1шт.

33

84473278

FITTING,7/8"-14 ORB x 15.88mm OD Bead x M10 x 1.0

1шт.

34

84549585

MOUNTING PLATE

Pump Support, Gray

1шт.

35

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

36

86508732

BOLT,5/8"-11 x 2.391" Cl 8

2шт.

37

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

38

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 22

1шт.

39

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 47

1шт.

40

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

41

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

42

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

2шт.

43

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 49

1шт.

44

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

45

87711337

COUPLING,19T, 1-1/8" ID

1шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

47

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

48

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

9шт.

50

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.
