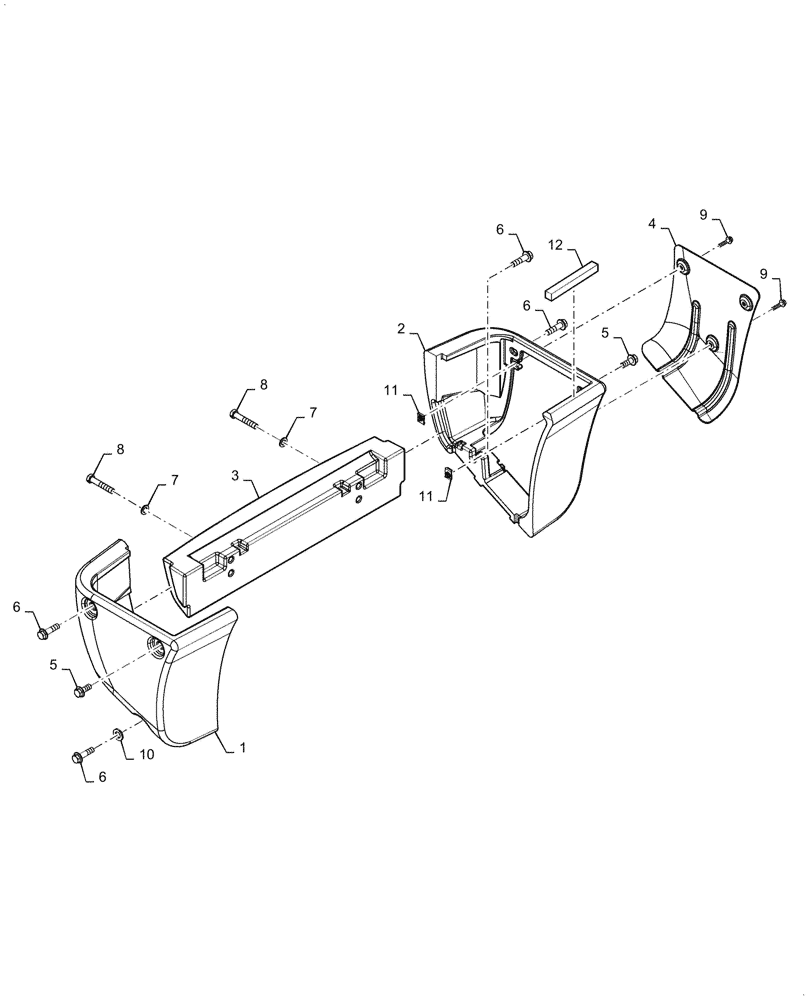

Запчасти Case SR270 (39.140.AM) - COUNTERWEIGHT (03-OCT-2016 & NEWER) (39) - FRAMES AND BALLASTING

1

47905475

BUMPER

Right, Heavy, Yellow

1шт.

2

47905477

BUMPER

Left, Yellow

1шт.

3

47904319

BUMPER

Rear, Heavy, Yellow

1шт.

4

47905476

COVER

Battery Compartment, Yellow

1шт.

5

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

2шт.

6

87675533

BOLT,M16 x 75.4mm, Cl 10.9

4шт.

7

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

8

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

4шт.

9

9804263

BOLT,M10 x 49.2mm, Cl 8.8

3шт.

10

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

11

84522379

SPRING NUT,M10 x 1.5

3шт.

12

84355546

FOAM INSULATION,215mm L

Adhesive

1шт.
