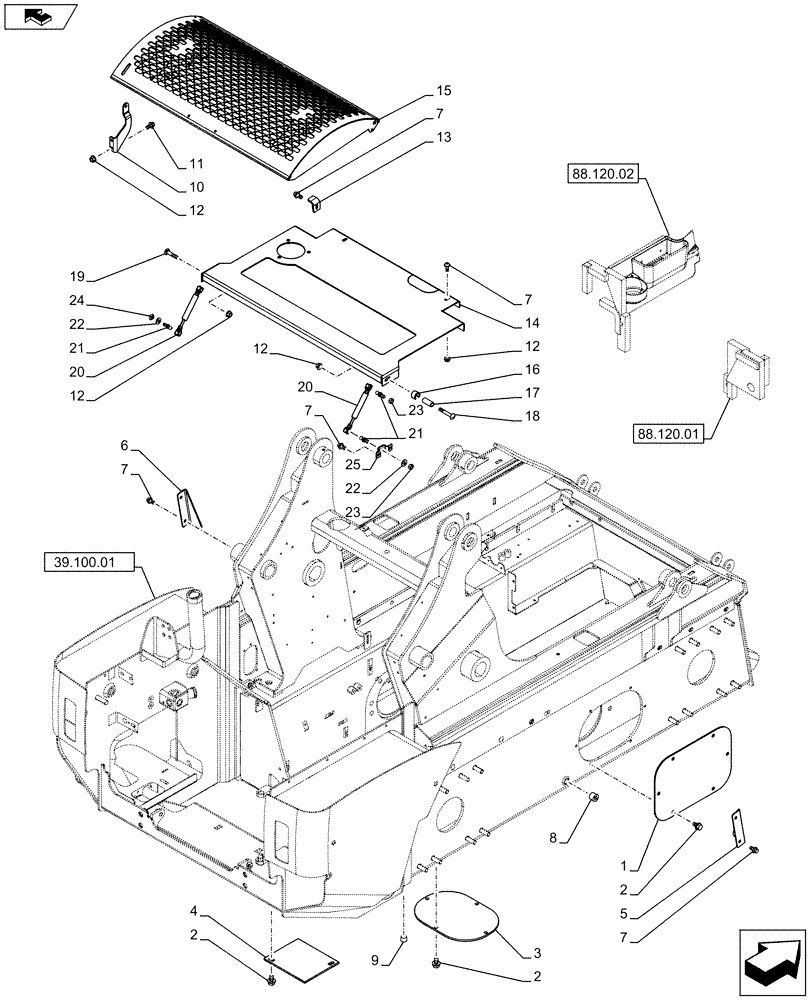

Запчасти Case SR250 (90.100.01) - HOOD AND COVERS, SR250, BSN NCM442790 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84421075

COVER PLATE

W/Bung, Tan

2шт.

2

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

3

84299800

COVER PLATE

Gray

1шт.

4

84299809

COVER PLATE

Plumbing Access Cover

1шт.

5

84354590

COVER PLATE

1шт.

6

84354589

COVER PLATE

1шт.

7

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

8

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

Pipe

2шт.

9

236622

PLUG,3/8" - 18 NPT

Pipe

2шт.

10

406256A1

HANDLE

Rear Hood

1шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

M8 X 15

8шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

13

84420534

STOP

2шт.

14

84201350

PANEL

Panel W, Rear Deck Large Gray

1шт.

15

84371087

HOOD

Tilt

1шт.

16

87429698

SPACER

Hood

2шт.

17

259905A1

SPACER

2шт.

18

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

19

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

20

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Hood Assist

2шт.

21

189609A1

BALL STUD,M8 x 1.25

4шт.

22

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

23

43362

NUT,M8 x 1.25, Cl 10

3шт.

24

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

1шт.

25

84356838

MOUNTING PLATE

Strut Mounting

1шт.

26

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

27

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

28

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

29

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

RWH M6x16 Torx 10.9

2шт.

30

86511444

FLANGE NUT,Hex, M6 x 1

2шт.
