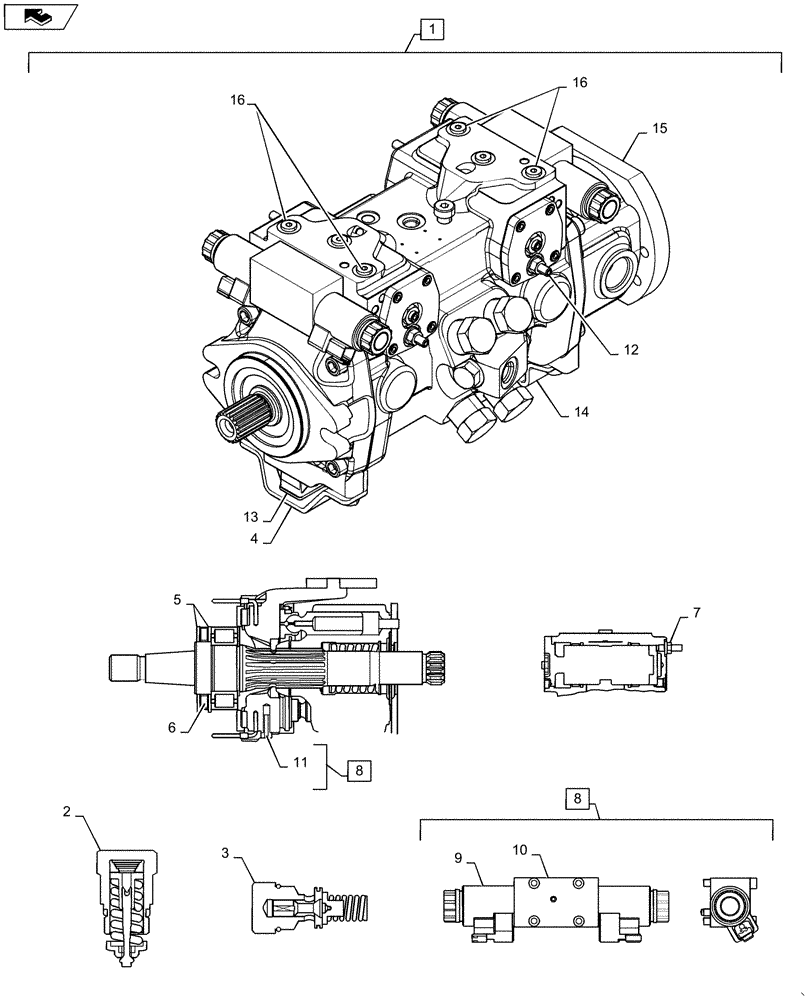

Запчасти Case SR250 (29.212.07) - PUMP, HYDROSTATIC EH 45CC A20VG (SR250,SV300) (29) - HYDROSTATIC DRIVE

1

84565753

HYDRAULIC PUMP,45 CC

Tandem, 45CC, E-H Controls, Incl 2 - 16

1шт.

1

84565753R

REMAN-HYD PUMP

Tandem, 45CC, E-H Controls, Incl 2 - 16

1шт.

1

84565753C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

47374657

HYDROSTATIC PUMP,45 CC

Tandem, 45CC, A22VG ET S40, E-H Controls, Incl 2 - 16, Start Year: 01-JUL-13

1шт.

1

47374657R

REMAN-HYDROSTAT PUMP

Tandem, 45CC, A22VG ET S40, E-H Controls, Incl 2 - 16, Start Year: 01-JUL-13

1шт.

1

47374657C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

87614031

VALVE PRESSURE RELIE

High, 360 Bar

4шт.

3

84540764

VALVE PRESSURE RELIE

Charge Pressure, 25 Bar

1шт.

4

84389781

SHIELD

Front Angle Sensor

2шт.

5

84389755

SEAL

V-Ring

2шт.

6

84389757

SEAL

Shaft

1шт.

7

84389758

NUT

Seal Lock

4шт.

8

84389759

MODULE

Control, Complete, Incl 9 - 11

1шт.

9

84389760

COIL

Proportional Solenoid

4шт.

10

84389762

MODULE

Control, Without Coils

1шт.

11

84389763

GASKET

Mounting, Control Module

1шт.

12

87627399

CAP

Service

4шт.

13

84356794

SENSOR

Angle

1шт.

14

84389782

SHIELD

Rear Angle Sensor

1шт.

15

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Mounting O-Ring

1шт.

16

84569334

ORIFICE,M6, 1mm ID

4шт.
