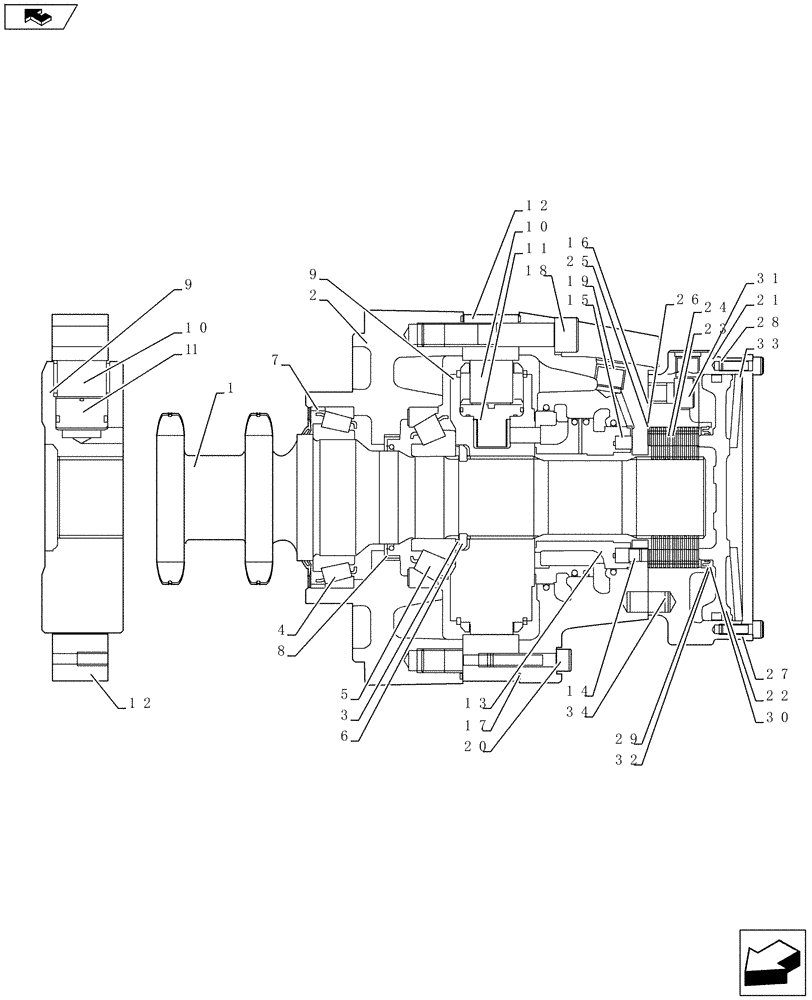

Запчасти Case SR250 (29.212.04[01]) - MOTOR, DRIVE MOTOR 1SPD (SR250,SV300) (29) - HYDROSTATIC DRIVE

1

84293370

DRIVE SHAFT

MCR5 1 SPD

1шт.

2

84293380

MOTOR HOUSING

ASM MCR5 Front W Seal

1шт.

3

87042903

KIT

Abutment Washer

1шт.

4

87042904

BALL BEARING,70 mm ID x 110 mm OD x 25 mm

70 X 110 X 25

1шт.

5

87042905

BALL BEARING,50mm ID x 110mm OD x 29.25mm W

50 X 110 X 29.25

1шт.

6

87042906

RING

MCR5 Split Ring

1шт.

7

NSS

NOT SOLD SEPARAT

FACE SEAL 78 X 110 X 12.2 NBR80

1шт.

8

87042907

SEAL

57.15 X 76.2 X 9.53 VITON

1шт.

9

NSS

NOT SOLD SEPARAT

Cylinder Block 1 SPD

1шт.

10

NSS

NOT SOLD SEPARAT

Roll LD

8шт.

11

NSS

NOT SOLD SEPARAT

Piston S/A

8шт.

12

87042908

CAM

MCR5 Cam 680/470 W 2S

1шт.

13

87042954

RING

MCR5 Dist. Ring 1S

1шт.

14

87042911

PIN

MCR5 Stop Pin S0471A

1шт.

15

87042912

SPRING

MCR3

9шт.

16

87042919

O-RING,1.78mm Thk x 107.67mm ID

SQ-Ring 107.67 X 1.68 VITON

1шт.

17

NSS

NOT SOLD SEPARAT

SQ. Ring 213 X 2.51 VITON

2шт.

18

87605313

HEX SOC SCREW,M14 x 80mm, Cl 12.9

Screw SH Cap M14 X 80 12.9

10шт.

19

NSS

NOT SOLD SEPARAT

Shipping Plug 3/4 - 16 UNF

1шт.

20

87602944

SCREW,M8 x 40mm, Cl 12.9

Screw SH Cap M8 X 40 12.9

2шт.

21

87042921

HOUSING

MCR5 Brake Housing S0465

1шт.

22

87042922

PISTON

MCR 3/5 Brake Piston

1шт.

23

NSS

NOT SOLD SEPARAT

MCR3 Outer Plate

16шт.

24

NSS

NOT SOLD SEPARAT

MCR5 Inner Plate

14шт.

25

NSS

NOT SOLD SEPARAT

Shim 80 X 63 X 0.1

1шт.

26

NSS

NOT SOLD SEPARAT

Shim 80 X 63 X 0.3

1шт.

27

NSS

NOT SOLD SEPARAT

MCR3 Brake Gasket B2/0.5

1шт.

28

NSS

NOT SOLD SEPARAT

SQ. Ring 139.07 x 5.16 VITON

1шт.

29

87042924

RING

MCR3 Brake Seal Ring B2M

1шт.

30

87042925

CLIP

MCR3 Circlip INT DIA 87

1шт.

31

86512142

HEX SOC SCREW,M12 x 30mm, Cl 12.9, Full Thd

5шт.

32

NSS

NOT SOLD SEPARAT

O-Ring 75.92 x 1.78 VITON

1шт.

33

87042926

SPRING

Disc Spring

1шт.

34

87042927

PIN

Dowel Pin 12 X 25

3шт.
