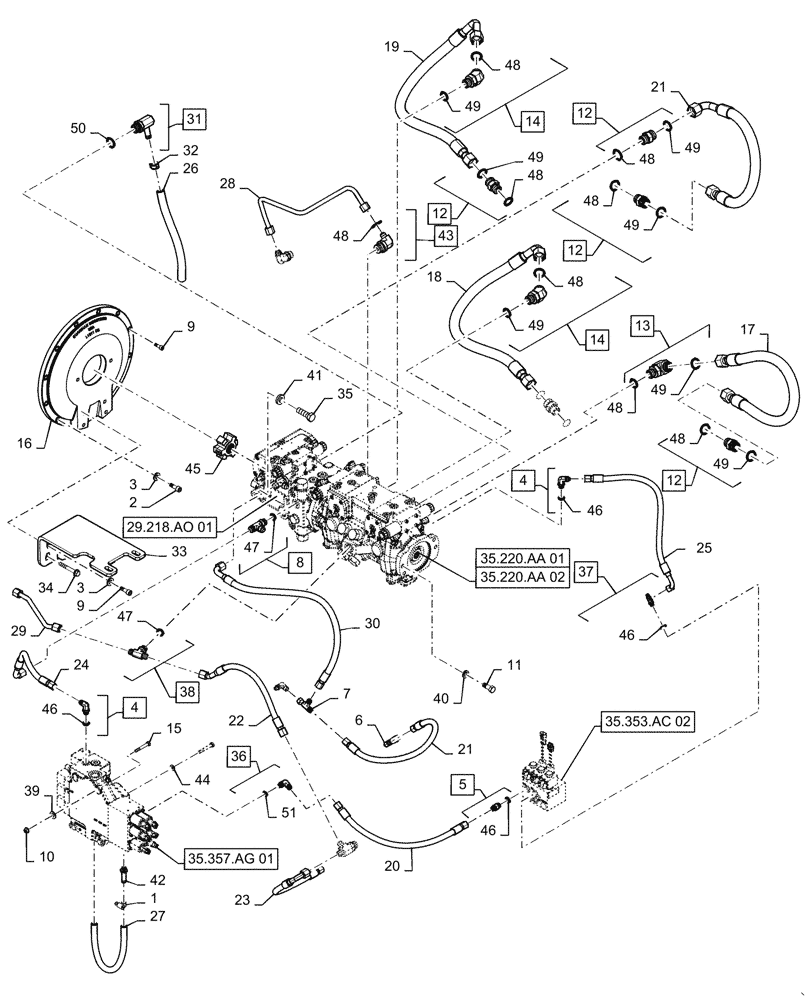

Запчасти Case SR250 (29.204.AB[05]) - E-H EHF PUMP AND CONTROL VALVE, DRIVE LINES (23-MAR-2016 & PRIOR) (29) - HYDROSTATIC DRIVE

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

2шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 46

3шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 46

1шт.

6

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

7

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 47

1шт.

9

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

10шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

11

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

12

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 48, 49

5шт.

13

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 48, 49

1шт.

14

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 48, 49

2шт.

15

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

16

47659211

COVER

Flywheel

1шт.

17

84258846

FLEXIBLE HOSE,19.05mm ID x 835mm L, SAE 100R19

Loop

1шт.

18

84258849

FLEXIBLE HOSE,19.05mm ID x 821mm L, SAE 100R19

Loop

1шт.

19

84258850

FLEXIBLE HOSE,19.05mm ID x 846mm L, SAE 100R19

Loop

1шт.

20

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

EH Control To Brake

1шт.

21

84312282

FLEXIBLE HOSE,19.05mm ID x 621mm L, SAE 100R19

Loop

1шт.

22

84356607

HYDRAULIC HOSE,9.53mm ID x 364mm L, SAE 100R17

Charge Supply A20

1шт.

23

84356613

HYDRAULIC HOSE,9.53mm ID x 552mm L, SAE 100R17

Charge Supply Brake

1шт.

24

84356615

HYDRAULIC HOSE,9.53mm ID x 402mm L, SAE 100R17

Charge Supply Loader Valve

1шт.

25

84356618

HYDRAULIC HOSE,9.53mm ID x 592mm L, SAE 100R17

NOR Pump To Brake

1шт.

26

84356619

HYDRAULIC HOSE,15.88mm ID x 335mm L

EHF Drain

1шт.

27

84373394

HOSE,12.7mm ID x 410mm L

EH Aux To EH Aux Drain

1шт.

28

84387079

HYD TUBE,12.7mm OD

EHF Pump Drain

1шт.

29

84419203

HYD TUBE,12.7mm OD

P1 To P2 Charge

1шт.

30

84419205

HOSE ASSY.,9.53mm ID x 780.8mm L, SAE 100R1

Pump Interlock

1шт.

31

84473278

FITTING,7/8"-14 ORB x 15.88mm OD Bead x M10 x 1.0

Incl 50

1шт.

32

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

33

84549585

MOUNTING PLATE

Pump Support

1шт.

34

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

35

86508732

BOLT,5/8"-11 x 2.391" Cl 8

2шт.

36

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 51

1шт.

37

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 46

1шт.

38

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 47

1шт.

39

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

40

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

41

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

2шт.

42

87314487

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

43

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 48

1шт.

44

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

45

87711337

COUPLING,19T, 1-1/8" ID

1шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 4, 5, 37

1шт.

47

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 8, 38

1шт.

48

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl in 12-14, 43

1шт.

49

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl in 12-14

1шт.

50

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 31

1шт.

51

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 36

1шт.
