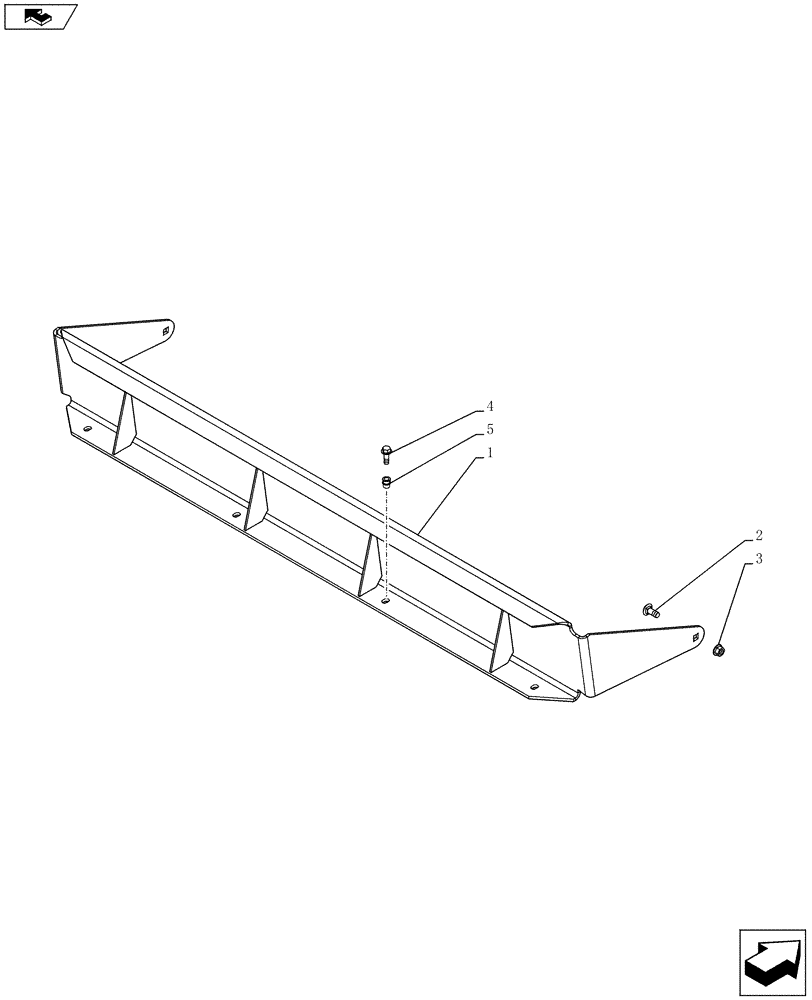

Запчасти Case SR250 (82.100.10) - SPILL GUARD 84 (SR250,SV300) (82) - FRONT LOADER & BUCKET

84344518

KIT

84 Spill Guard Kit, Includes Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

Extension, 84 Spill Guard

1шт.

2

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

3

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

4

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

5

390618A1

INSERT,Knurled Open, M10 x 13.46mm OD

M10, Threaded

4шт.

6

84353935

INSTRUCTION

Installation, Spill Guard Kit (Not Shown)

1шт.
