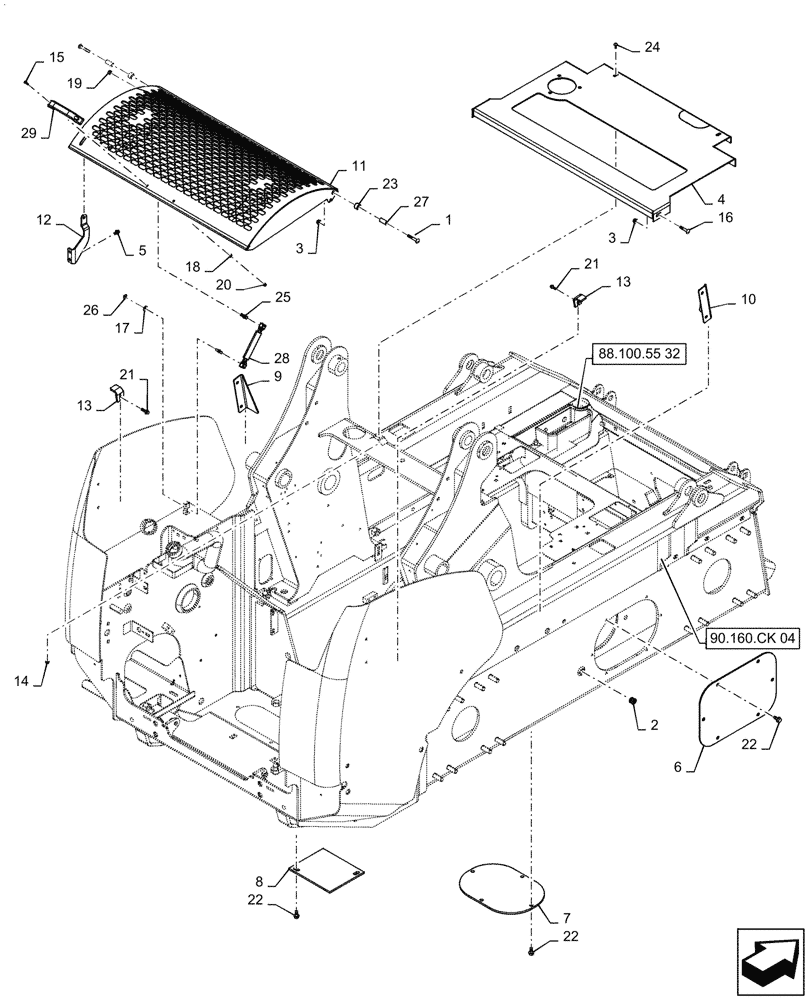

Запчасти Case SR250 (90.100.AU) - HOODS AND COVERS, SR250, BSN NCM442790 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

2

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

4

84201350

PANEL

Rear Deck

1шт.

5

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

6

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

7

84299800

COVER PLATE

Gray

1шт.

8

84299809

COVER PLATE

Plumbing Access

1шт.

9

84354589

COVER PLATE

LH Chassis

1шт.

10

84354590

COVER PLATE

RH Chassis

1шт.

11

84371087

HOOD

Tilt

1шт.

12

84405254

LOCKING TAB

Angle

1шт.

13

84420534

STOP

Angle, Hood

2шт.

14

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

15

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

16

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

18

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

20

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

21

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

22

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

23

87429698

SPACER

Hood Tab

2шт.

24

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

25

189609A1

BALL STUD,M8 x 1.25

2шт.

26

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

27

259905A1

SPACER

Hood Hinge

2шт.

28

400472A1

SPRING,10mm Rod, 38.1mm Stroke

1шт.

29

406256A1

HANDLE

Rear Hood

1шт.
