(90.100.AG) - CHASSIS HOODS AND COVERS (SR220,SR250)

Запчасти Case SR250 (90.100.AG) - CHASSIS HOODS AND COVERS (SR220,SR250) (90) - PLATFORM, CAB, BODYWORK AND DECALS

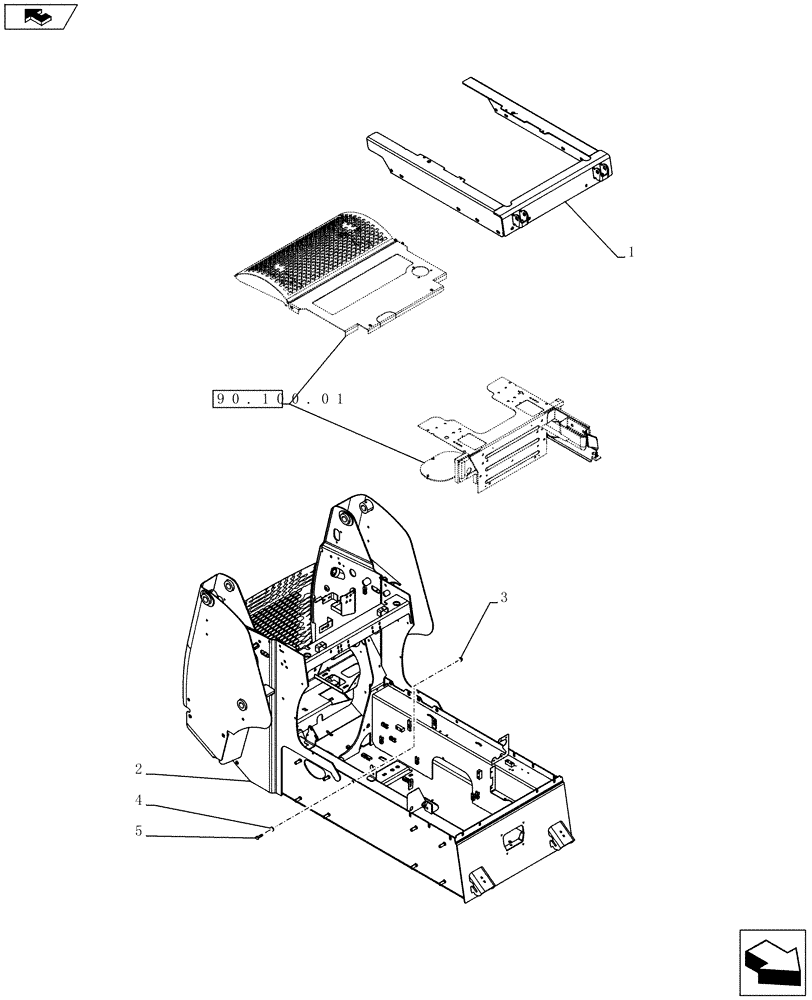

Схема запчастей Case SR250 - (90.100.AG) - CHASSIS HOODS AND COVERS (SR220,SR250) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
3
home
2
90.100.01
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84309634

DRAWBAR FRAME

Upper Chassis Frame

1шт.

2

NSS

NOT SOLD SEPARAT

Lower Chassis Frame

1шт.

3

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

13шт.

5

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

12шт.
