(35.353.AC[05]) - 2-SPEED LINES

Запчасти Case SR240 (35.353.AC[05]) - 2-SPEED LINES (35) - HYDRAULIC SYSTEMS

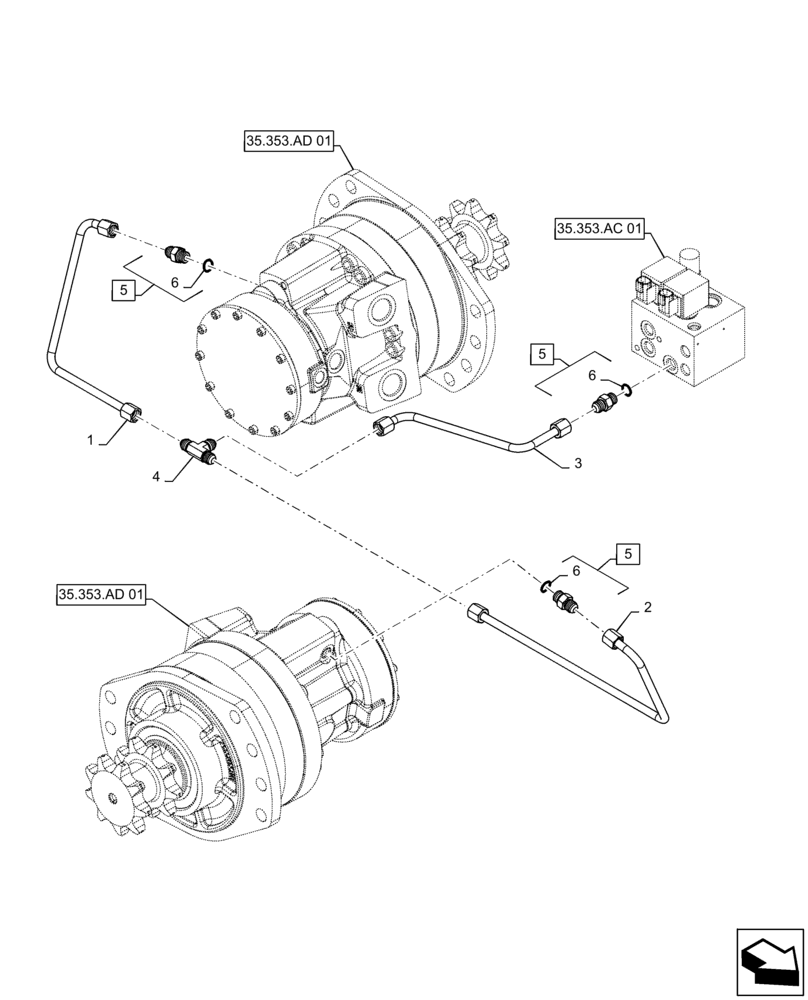

Схема запчастей Case SR240 - (35.353.AC[05]) - 2-SPEED LINES (35) - HYDRAULIC SYSTEMS
6
35.353.ac 01
35.353.ad 01
5
6
5
35.353.ad 01
3
5
1
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84258811

RIGID TUBE

9.53mm OD, Assy, 2-Speed, Rear

1шт.

2

84259631

RIGID TUBE

9.53mm OD, Assy, 2-Speed, Front

1шт.

3

84258810

RIGID TUBE

9.53mm OD, Assy, 2-Speed Common

1шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 6

3шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.
