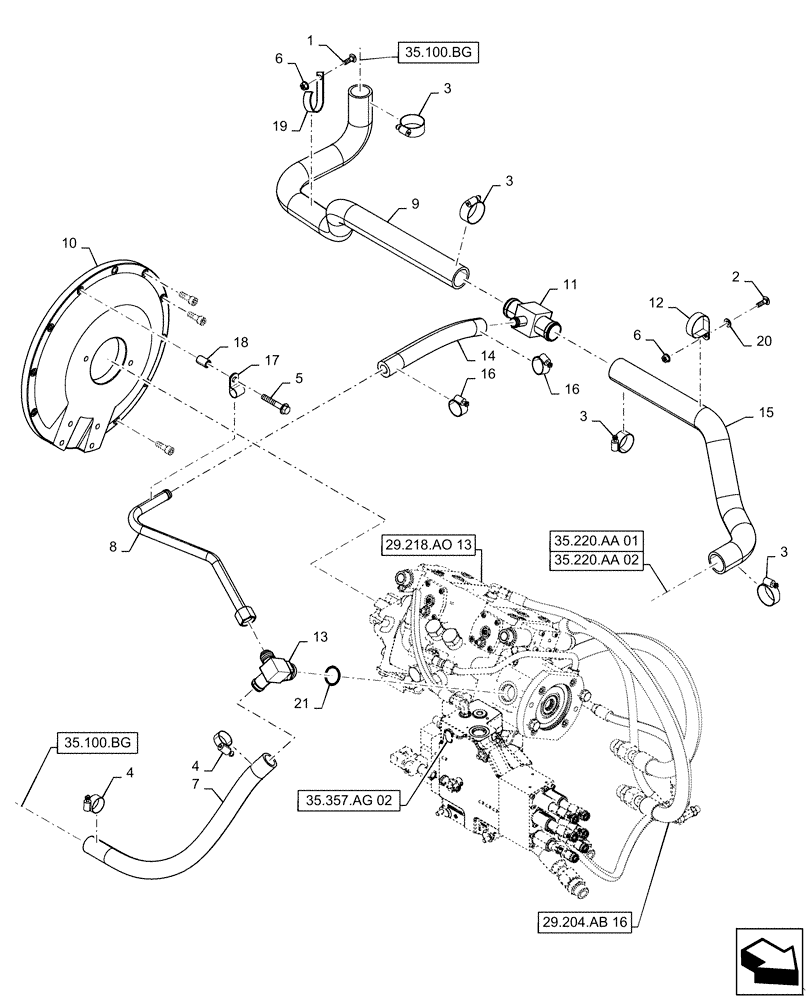

Запчасти Case SR240 (29.204.AB[04]) - HYDROSTATIC PUMP, SUPPLY LINES, E-H CONTROLS (29) - HYDROSTATIC DRIVE

1

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

2

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

4

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

5

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

1шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

7

84303515

FLEXIBLE HOSE,25.4mm ID x 560mm L, SAE 100R4

Charge Supply

1шт.

8

84344932

RIGID TUBE,19.05mm OD

Tandem Supply

1шт.

9

47612623

HOSE,38.1mm ID

Gear Pump Suction

1шт.

10

47659227

COVER

Flywheel, W/O EHF

1шт.

10

47659211

COVER

Flywheel, W/ EHF

1шт.

11

47788716

TEE,3/4" Hose Barb x 1-1/2" Hose Barb x 1-1/2" Hose Barb

1шт.

12

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

13

84344924

90 ELBOW,1-5/16" - 12 ORB x 1-1/16" - 12 JIC x -16 Hose Barb

Incl 21

1шт.

14

84344942

HOSE,19.05mm OD x 280mm L

Tandem Supply

1шт.

15

84349296

HOSE,38.1mm ID

Gear Pump Suction

1шт.

16

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

17

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

18

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

19

87313360

CLIP,50.8mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

20

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
