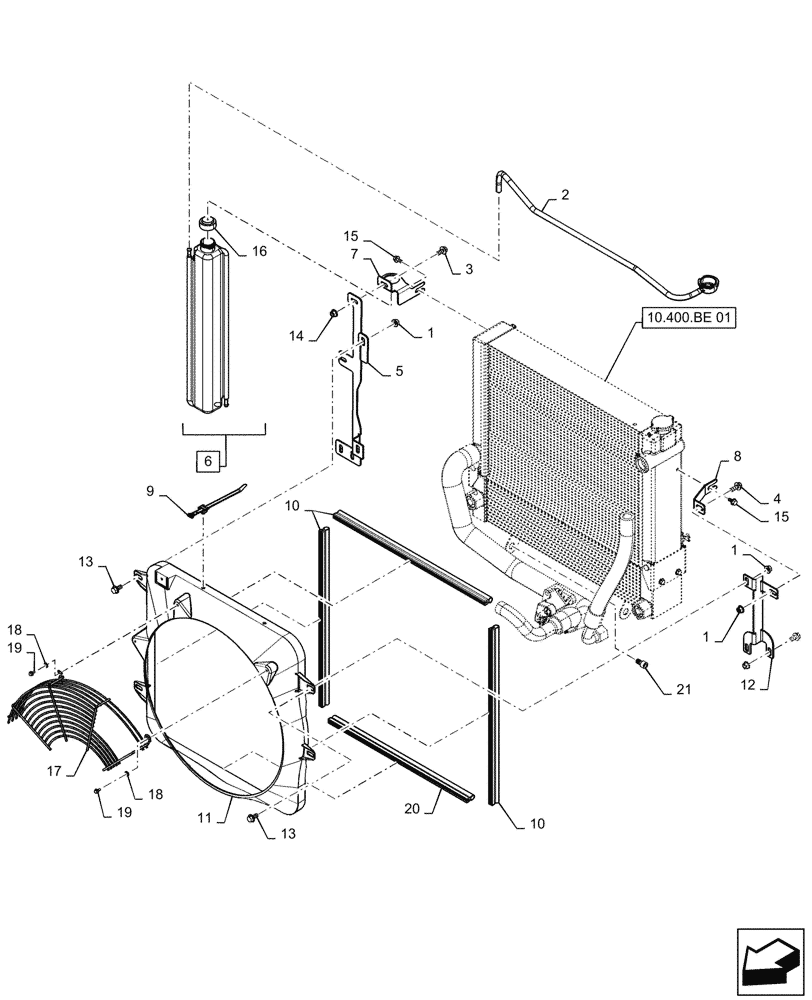

Запчасти Case SR240 (10.414.AC) - FAN SHROUD MOUNTING PARTS (10) - ENGINE

1

43435

FLANGE NUT,Hex, M10 x 1.5

8шт.

2

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

2.85 FT

1шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

4

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

5

47410491

BRACKET

RH, Fan Shroud

1шт.

6

47490003

BOTTLE

Coolant Recovery Bottle, Incl 16

1шт.

7

47516026

BRACKET

Upper, Coolant Bottle

1шт.

8

47516027

BRACKET

Radiator Mount

1шт.

9

84259663

CABLE TIE,228.6mm L, Nylon, Black

Polyamide 6.6

2шт.

10

48065259

RUBBER SEAL

Bulb

3шт.

11

47756790

SHROUD

518mm, Fan

1шт.

12

84552138

BRACKET

LH, Fan Shroud

1шт.

13

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

7шт.

14

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

16

R50468

CAP

Vented, Coolant Bottle

1шт.

17

47416077

GUARD

Fan

1шт.

Only on Units W/O AC

1шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

Only on Units W/O AC

1шт.

19

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

Only on Units W/O AC

1шт.

20

84406808

RUBBER SEAL,540mm L

1шт.

21

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

2шт.
