(90.105.CU) - COVERS & INSULATION

Запчасти Case SR240 (90.105.CU) - COVERS & INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

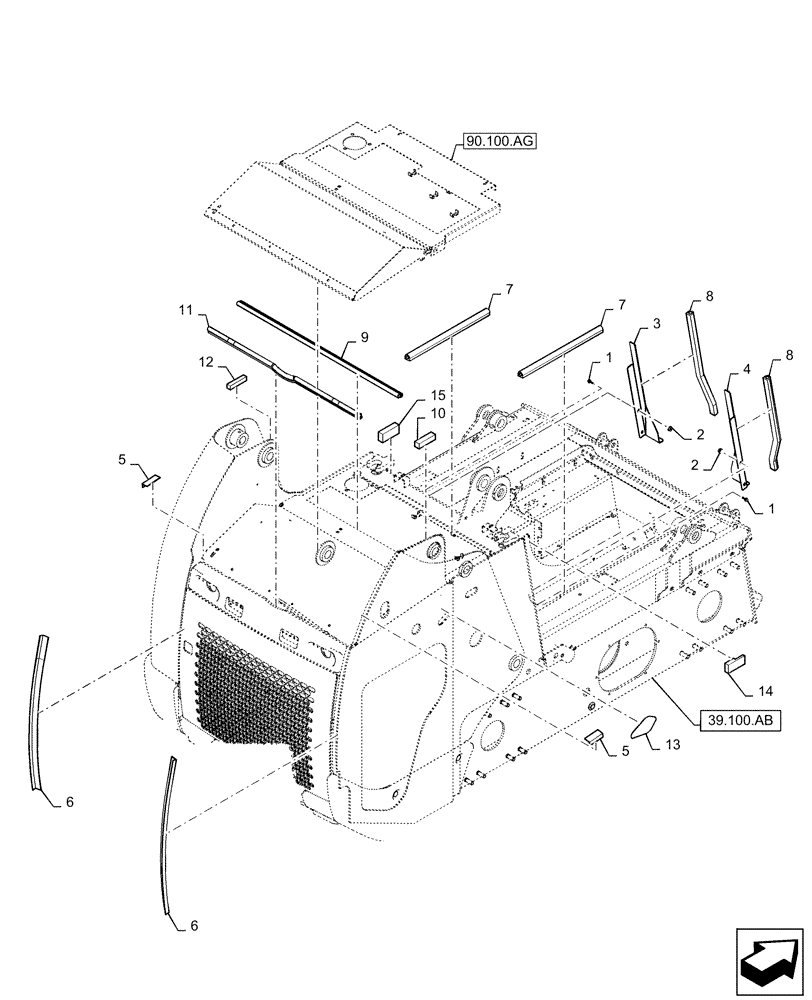

Схема запчастей Case SR240 - (90.105.CU) - COVERS & INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
7
6
7
13
6
10
2
3
4
11
1
14
1
90.100.ag
2
8
5
5
8
9
15
39.100.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

3

47367373

COVER

LH, Chassis

1шт.

4

47367375

COVER

RH, Chassis

1шт.

5

47729709

SEAL

50mm L, Flap

2шт.

6

47729715

SEAL

760mm L, Flap

2шт.

7

47729721

RUBBER SEAL,465mm L

465mm L, Adhesive

2шт.

8

47729722

RUBBER SEAL,545mm L

545mm L, Adhesive

2шт.

9

47729731

SEAL

934mm L, Bulb

1шт.

10

47733141

FOAM

95mm L, Seal Block

1шт.

11

47764946

SEALING STRIP,877mm L

877mm L, Bulb

1шт.

12

47767461

FOAM INSULATION

95mm L, Seal Block

1шт.

13

84300911

ACCESS COVER

Lexan, Aux Electric

1шт.

14

84600485

FOAM INSULATION

95mm L, RH, Hood

1шт.

15

84600487

FOAM INSULATION

95mm L, LH, Hood

1шт.
