(55.101.AC[25]) - CHASSIS OPTION HARNESS, MECHANICAL CONTROLS

Запчасти Case SR240 (55.101.AC[25]) - CHASSIS OPTION HARNESS, MECHANICAL CONTROLS (55) - ELECTRICAL SYSTEMS

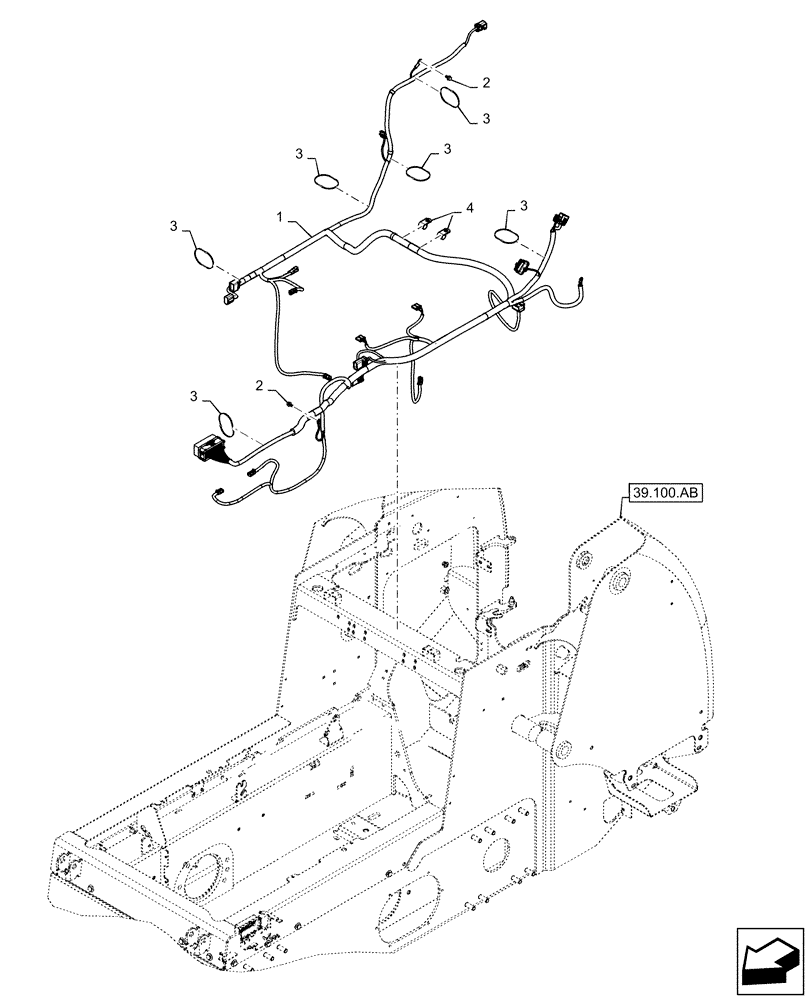

Схема запчастей Case SR240 - (55.101.AC[25]) - CHASSIS OPTION HARNESS, MECHANICAL CONTROLS (55) - ELECTRICAL SYSTEMS
39.100.ab
3
2
3
3
1
4
2
3
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47747269

WIRE HARNESS

Chassis Options

1шт.

2

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

7шт.

4

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

2шт.
