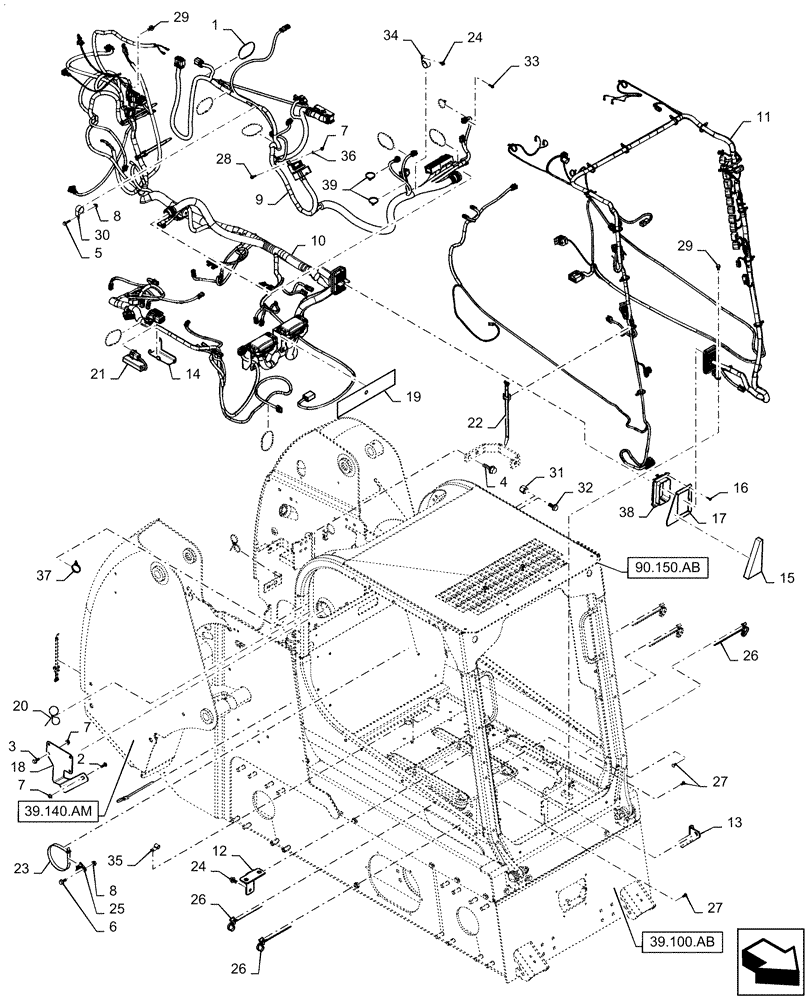

Запчасти Case SR240 (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, MECHANICAL CONTROLS (28-MAR-2017 & PRIOR) (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

14шт.

2

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

5

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

1шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

7шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

9

47803834

WIRE HARNESS

Rear Chassis EH

1шт.

10

47803835

WIRE HARNESS

Chassis Mech

1шт.

11

47803840

WIRE HARNESS

Cab Mech

1шт.

12

47807585

BRACKET

Harness Crossover

1шт.

13

47807590

BRACKET

Crossover, LWR Guide

1шт.

14

47807591

BRACKET

Control Tray

1шт.

15

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

LH inner Foam

1шт.

16

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

17

47825472

PLATE

Bulkhead Adapter, Years: -27-SEP-17

1шт.

17

47867182

Bulkhead Adapter, Start Year: 28-SEP-15

PLATE

1шт.

18

47832750

BRACKET

Fuse Mounting

1шт.

19

47833184

DECAL

Fuse Box Layout

1шт.

20

82012869

CABLE TIE,300mm L, Nylon, Black

Double

3шт.

21

84131374

MODULE

Prop Aux

1шт.

22

84259663

CABLE TIE,228.6mm L, Nylon, Black

Nylon

4шт.

23

84266050

CABLE TIE,384mm L, Polyamide

Nylon

1шт.

24

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

3шт.

25

84360210

BASE

Tie

1шт.

26

84420746

CABLE TIE,403.9mm L, Nylon

Nylon

10шт.

27

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

28

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

29

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

30

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

31

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

32

86639263

BOLT,Hex, M5, Cl 8

1шт.

33

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

1шт.

34

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

35

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

36

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

37

87668737

CABLE TIE,203.2mm L, Nylon, Black

Nylon, FIR Tree Assy

1шт.

38

87718301

WIRE CONNECTOR,Flange

Flange Interface

1шт.

39

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
