Запчасти Case SR240 (44.511.AG[01]) - WHEELS (44) - WHEELS

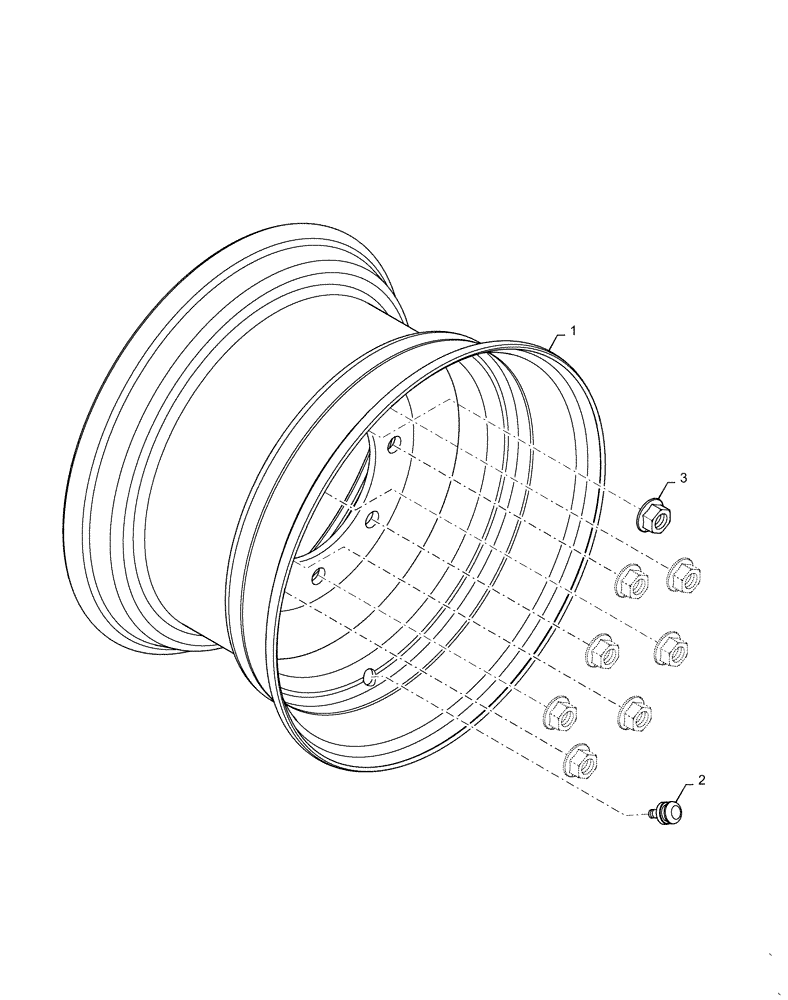

Схема запчастей Case SR240 - (44.511.AG[01]) - WHEELS (44) - WHEELS
1
2
3

Артикул

Название

Примечание

Количество

*

PL

PROCURE LOCALLY

12" x 16.5" Tire

4шт.

1

84239414

RIM

9.75" x 16.5" Stamped Center, 70 OTW, Power Tan

4шт.

1

84239417

RIM

9.75" x 16.5" Solid Center, 70 OTW, Power Tan

4шт.

*

PL

PROCURE LOCALLY

33" x 15.5" x 16.5" Tire

4шт.

1

84239421

RIM

16.5" x 12", Solid Center, 76 OTW, Power Tan

4шт.

*

PL

PROCURE LOCALLY

14" x 17.5" Tire

4шт.

1

84362308

RIM

17.5" x 10.5", Solid Center, 76 OTW, Power Tan

4шт.

1

47913504

RIM,16.5” Dia x 9.75” W, 8 Bolt, Gray

9.75" x 16.5" Solid Center, 70 OTW, Gray

4шт.

Tied to var 8503507 - 12 x 16.5 Mining (70 OTW)

1шт.

2

512083

VALVE STEM

Incl Cap

4шт.

3

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

Only for Solid Center Rim

1шт.

3

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

32шт.

Only for Stamped Center Rim

1шт.

Выбрано товаров: 14
