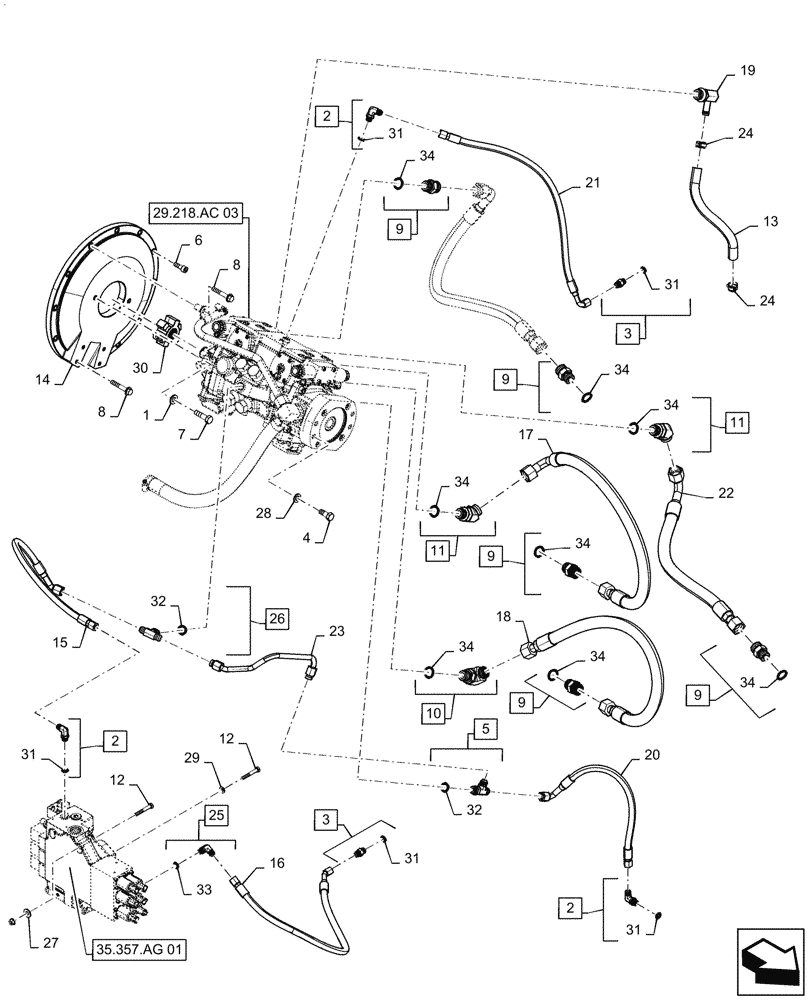

Запчасти Case SR220 (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (29) - HYDROSTATIC DRIVE

1

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 31

3шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 31

2шт.

4

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

5

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 32

1шт.

6

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

7

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

2шт.

8

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

9

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 34

5шт.

10

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 34

1шт.

11

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 34

2шт.

12

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

13

47468888

HYDRAULIC HOSE,15.88mm ID x 292.1mm L

Pump Drain

1шт.

14

47659227

COVER

Flywheel

1шт.

15

48009499

HYDRAULIC HOSE,10mm ID x 620mm L

EH LV Interlock

1шт.

16

48019269

HYDRAULIC HOSE,10mm ID x 870mm L

EHControl to Brake

1шт.

17

84258848

FLEXIBLE HOSE,19.05mm ID x 896mm L, SAE 100R19

Loop

2шт.

18

84258856

FLEXIBLE HOSE,19.05mm ID x 867mm L, SAE 100R19

Loop

1шт.

19

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

1шт.

20

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

EH VLV Interlock

1шт.

21

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

EH SWAT3 NOR WHL

1шт.

22

84312282

FLEXIBLE HOSE,19.05mm ID x 621mm L, SAE 100R19

Loop

1шт.

23

84349300

RIGID TUBE,12.7mm OD

EH Charge Supply

1шт.

24

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

25

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 33

1шт.

26

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 32

1шт.

27

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

28

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

29

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

30

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

32

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

33

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

34

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

8шт.
