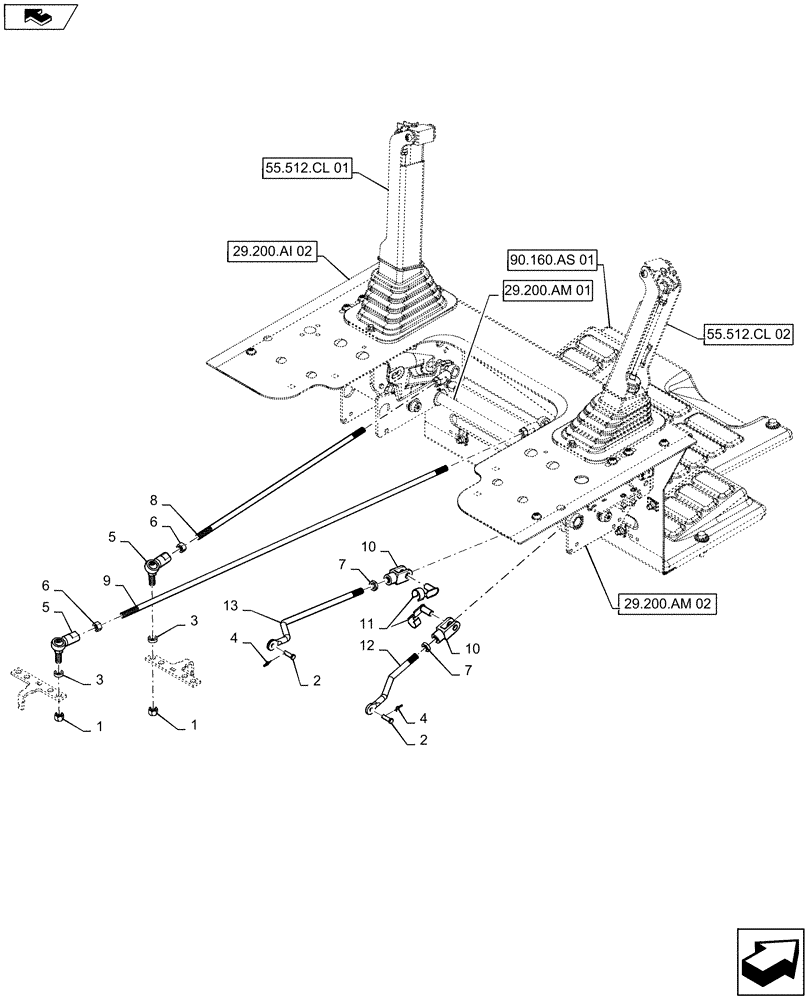

Запчасти Case SR220 (29.200.AI[01]) - HAND CONTROLS MOUNTING ASSEMBLY (29) - HYDROSTATIC DRIVE

1

80855

NUT,Hex, 3/8" - 24

2шт.

2

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

3

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

4

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

Cotter

2шт.

5

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

Rod End, 3/8" - 24 RH Thread, With Hex Drive Socket

2шт.

6

86509310

NUT,3/8" - 24, Gr 5

2шт.

7

84221258

THIN NUT,M10 x 1.5, Cl 5

2шт.

8

84300956

THREADED ROD

Ground Drive, 741mm

1шт.

9

84300954

THREADED ROD

Ground Drive, 453mm

1шт.

10

84299261

CLEVIS,10mm ID x 20mm L

2шт.

11

84299262

CLEVIS PIN,10mm OD x 20mm L

2шт.

12

84300037

ROD,10mm OD x 143.2mm L

Loader Valve, Bucket

1шт.

13

84300039

ROD,10mm OD x 283.7mm L

Loader Valve, Boom

1шт.
