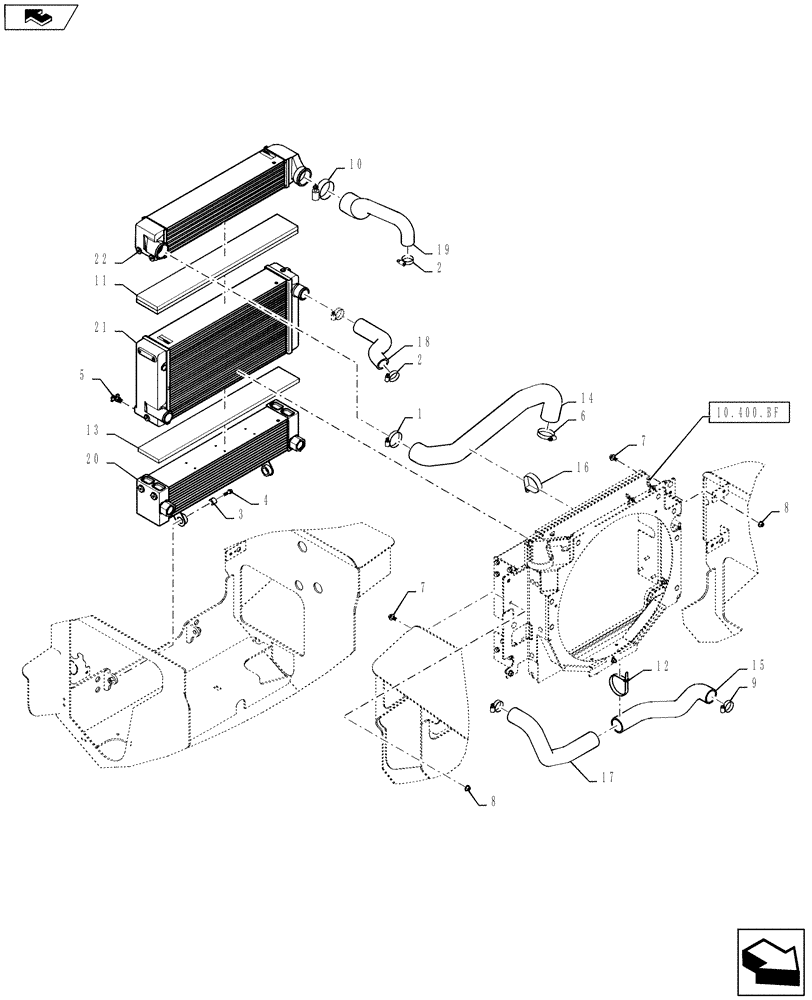

Запчасти Case SR220 (10.400.BE) - COOLER ASSY. (10) - ENGINE

1

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

3шт.

3

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

Hinge Pivot

2шт.

4

87301277

BOLT,M12 x 71.8mm, Cl 10.9

2шт.

5

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

6

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

1шт.

7

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

8

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

9

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

10

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

1шт.

11

84552108

INSULATION,706.50mm L x 104.50mm W x 22mm Thk

Cooler

1шт.

12

84551467

CABLE TIE,381mm L

12" Long

2шт.

13

47410465

INSULATION,706.50mm L x 104.50mm W x 16.50mm Thk

Cooler

1шт.

14

47411236

HOSE

Intake Air, Engine To CAC

1шт.

15

47411238

HOSE

Lower Radiator, Coolant

1шт.

16

84201540

CLAMP,69.8mm, Coat, 13.5mm Bolt Hole, P Type

Insulated

1шт.

17

84549569

RADIATOR HOSE

Lower Radiator, Coolant

1шт.

18

84496660

HOSE

Upper Radiator, Coolant

1шт.

19

84496890

HOSE

Intake Air, CAC To Engine

1шт.

20

84499497

OIL COOLER

Standard Fin Density

1шт.

20

84475136

OIL COOLER

Low Fin Density, Optional

1шт.

Not Factory Option, Only Available Through Service Parts

1шт.

21

84499505

RADIATOR

Standard Fin Density

1шт.

21

47373877

MODULE

Radiator, Low Fin Density, Optional

1шт.

Not Factory Option, Only Available Through Service Parts

1шт.

22

84515801

COOLER

Charge Air, Standard Fin Density

1шт.

22

47373882

SERVICE KIT

Charge Air Cooler, Low Fin Density, Optional

1шт.

Not Factory Option, Only Available Through Service Parts

1шт.
