Запчасти Case SR220 (88.055.05) - DIA KIT, EU ROAD LIGHTS, RADIAL BOOMS (88) - ACCESSORIES

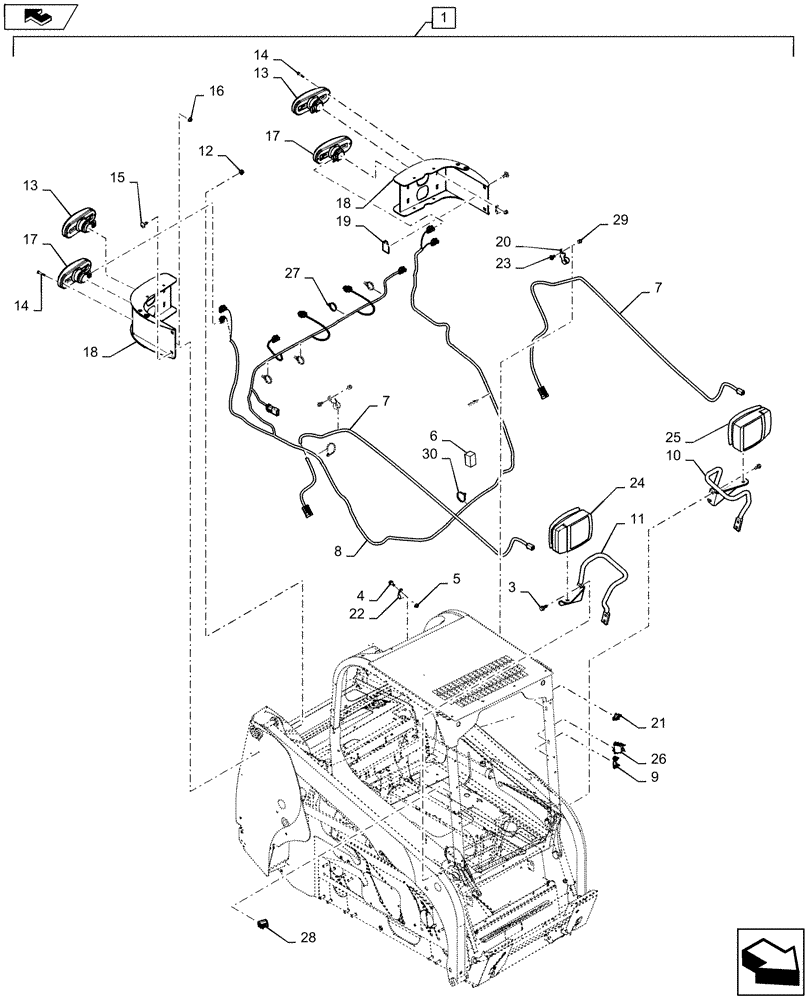

Схема запчастей Case SR220 - (88.055.05) - DIA KIT, EU ROAD LIGHTS, RADIAL BOOMS (88) - ACCESSORIES
18
21
19
23
15
home
25
29
11
6
18
24
7
16
3
7
9
14
12
1
4
13
27
26
5
14
13
22
8
28
17
30
17
10
20

Артикул

Название

Примечание

Количество

1

84424045

SERVICE KIT

Road Lights, Incl 2 - 30

1шт.

2

84477405

INSTRUCTION

Sheet, Road Lights, Not Shown

1шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

6

9821783

FLASHER UNIT

1шт.

7

84262451

WIRE HARNESS

Boom Road

2шт.

8

84262455

WIRE HARNESS

Rear Road Jumper, Case

1шт.

9

84263153

SWITCH

Rocker, Loader Lockout

1шт.

10

84306583

BRACKET

Light, Left Hand, Tan

1шт.

11

84306585

BRACKET

Light, Right Hand, Tan

1шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

13

87627854

LIGHT ASSY.,12V, 27W, Red

Lamp, Rear Stop - Tail

2шт.

14

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

15

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

16

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

17

87629587

LIGHT ASSY.,12V, 27W, Amber

Turn / Slow Moving Vehicle

2шт.

18

84419628

BRACKET

Rear Road Light, Tan

2шт.

19

84416164

FOAM INSULATION

Right Upper Chassis

2шт.

20

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

21

86604657

INDICATOR, TURN SIGN

1шт.

22

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

Closed

8шт.

23

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

24

87572859

LAMP

Head, Boom

1шт.

25

87572860

LAMP

Head, Boom

1шт.

26

87634133

SWITCH

Hazard Lights

1шт.

27

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

4шт.

28

131691A1

ROCKER SWITCH

Turn Signal

1шт.

29

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

Twist

2шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

Выбрано товаров: 30
