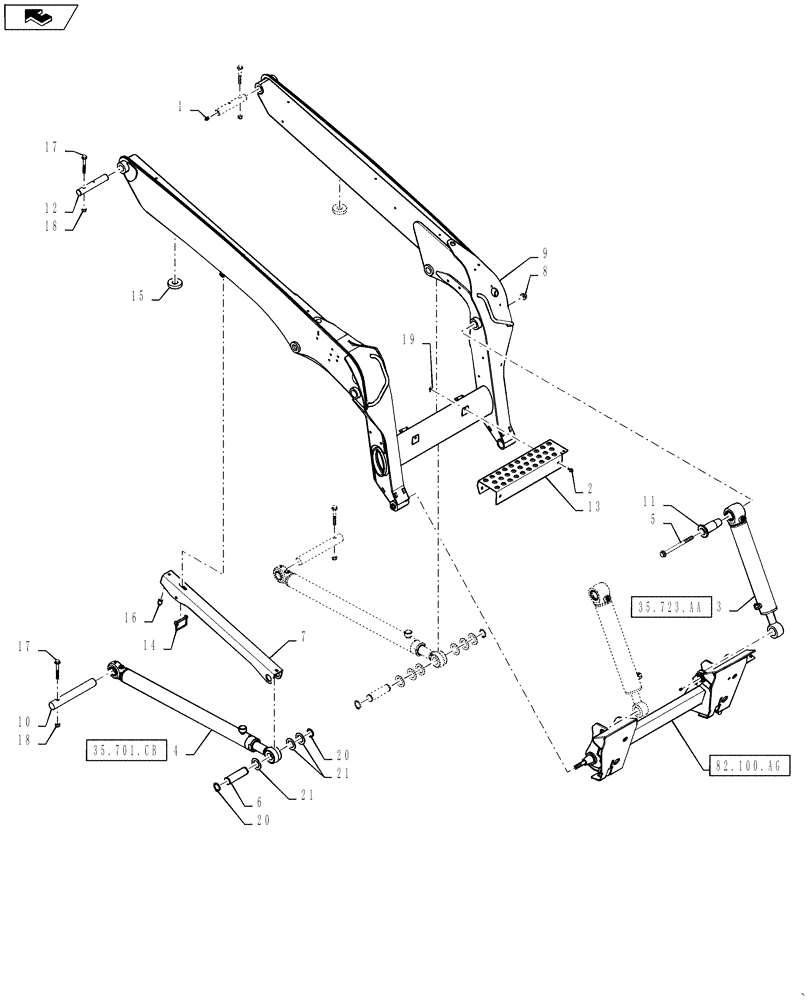

Запчасти Case SR220 (82.100.AF) - LOADER ARM, SR220 (82) - FRONT LOADER & BUCKET

1

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

47364444

HYDRAULIC CYLINDER,38.1mm Rod, 410mm Stroke

Bucket Cylinder, 38.1mm ID x 76.1mm Bore x 410mm Stroke

2шт.

See Figure 35.723.AA For Service Parts

1шт.

47364444R

LIFT CYLINDER

SR220 TIER 4A (7/12-)

2шт.

47364444C

LIFT CYLINDER

Return Number

1шт.

4

47364860

HYDRAULIC CYLINDER,44.4mm Rod, 817.9mm Stroke

Lift, 44.4mm Rod x 63.5mm Bore x 817.9mm Stroke

2шт.

See Figure 35.701.CB For Service Parts

1шт.

47364860R

LIFT CYLINDER

SR220 TIER 4A (1/13-)

2шт.

47364860C

LIFT CYLINDER

Return Number

1шт.

5

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

6

84248603

PIN,38.15mm OD x 137.9mm L

Lift Cylinder

2шт.

7

84255103

STRUT

Channel

1шт.

8

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

9

84391755

KIT

radial Arm, Tan, Incl Decals and Instructions

1шт.

10

84308025

PIN,38.15mm OD x 280mm L

Chassis To Lift Cylinder

2шт.

11

84319704

PIN,50mm OD x 111mm L

Boom To Tip Cylinder

2шт.

11

47489943

PIN,44.45mm OD x 118.5mm L

Boom To Tip Cylinder, Start Year: 31-JUL-13

2шт.

12

84341462

PIN,38.15mm OD x 233.5mm L

Boom To Chassis

2шт.

13

84377147

STEP

Tan

1шт.

14

84467349

PIN,9.53mm OD x 76.2mm L

Snapper

1шт.

15

84530035

MOUNTING PLATE

Rear Mount

2шт.

16

85802403

PLUG,13mm OD

Loader Prop

1шт.

17

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

18

86512554

NUT,M10 x 1.5, Cl 10

4шт.

19

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

20

86632531

SNAP RING,#150, Ext

4шт.

21

86632586

WASHER,1.53" ID x 2.5" OD x 0.11" Thk

1.531" x 2-1/2" x 0.109", CST, ZND

10шт.

22

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

Base End of Tip Cyl, Not Illustrated, Start Year: 31-JUL-13

2шт.
