Запчасти Case SR220 (05.100.02) - INITIAL STOCKING LIST, LIST B - PARTS RECOMMENDED FOR PLANNED MAINTENANCE AND BASIC REPAIR (05) - SERVICE & MAINTENANCE

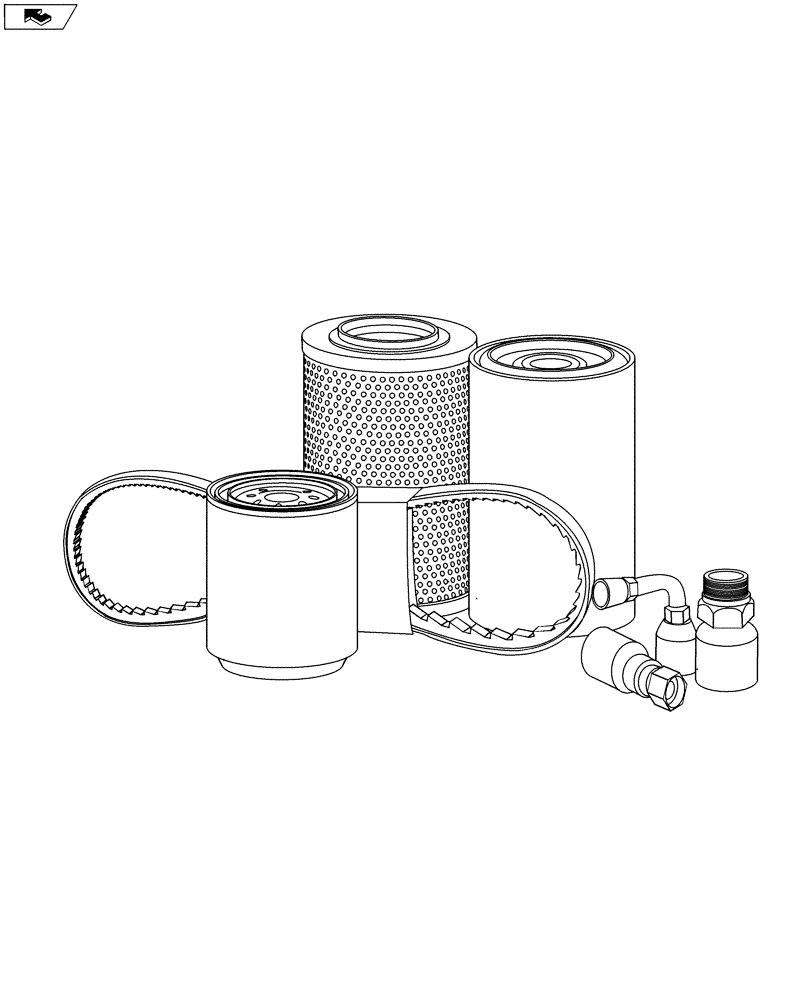

Схема запчастей Case SR220 - (05.100.02) - INITIAL STOCKING LIST, LIST B - PARTS RECOMMENDED FOR PLANNED MAINTENANCE AND BASIC REPAIR (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

1

84527833

SENSOR

Water-In-Fuel

1шт.

2

2852531

BREATHER

Crankcase

1шт.

3

44995162

BULB,T-3 1/4, 12.8V, 50W

#885, 12V

1шт.

4

9847313

BULB,#894, 12V, 37.5W

1шт.

5

257448A1

CAP

Hydraulic Fill

1шт.

6

257448A1

CAP

Hydraulic Reservoir

1шт.

7

87687375

RADIATOR CAP

1шт.

8

84200822

CHAIN,RC100, 50 Links x 31.75mm = 1587.5mm L

Drive, 100/50P

1шт.

9

84200823

CHAIN,RC100, 74 Links x 31.75mm = 2349.5mm L

Drive, 100/74P

1шт.

10

84389760

COIL

Solenoid

1шт.

11

84390117

COUPLING

Quick, 1/2" Male

1шт.

12

84390118

COUPLING

Quick, 1/2" Female

1шт.

13

84390119

COUPLING

Quick, 3/8" Female

1шт.

14

84286249

SENSOR

DPF Delta Pressure

1шт.

15

504075145

ELEMENT

Breather

1шт.

16

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female Quick Coupler

1шт.

17

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male Quick Coupler

1шт.

18

121410A1

FUSE,5A, Mini, Tan

1шт.

19

121414A1

FUSE,20A, Mini, Yellow

1шт.

20

121415A1

FUSE,25A, Mini, Clear

1шт.

21

86503942

FUSE,3A, Micro

3 Amp, Mini

1шт.

22

87472238

FUSE,60A, Blade

60 Amp, Mini

1шт.

23

121412A1

FUSE,10A, Mini, Red

1шт.

24

121413A1

FUSE,15A, Mini, Blue

1шт.

25

504378947

HEATER PLUG

Glow

1шт.

26

84277824

HOSE,45mm ID, SAE 20R4

Coolant Lower

1шт.

27

84277825

HOSE

Coolant Upper

1шт.

28

84386290

KIT

Spool Wiper

1шт.

29

84286040

SENSOR

Lambda

1шт.

30

82013124

RELAY,12V, 30A

ABS/Glow Plugs

1шт.

31

87655334

RELAY,12V, 35A, Micro

1шт.

32

87355337

RELAY,12V, 45A

1шт.

33

504369148

SENSOR

Air Pressure And Temperature

1шт.

34

82017881

SENSOR

Coolant Temp

1шт.

35

84386295

SENSOR

EH Loader Control Valve Spool Position

1шт.

36

87482353

SENSOR

DPF Temperature

1шт.

37

84259684

DRIVEN SPROCKET,30T

1шт.

38

84239537

SWITCH

Backup Alarm

1шт.

39

84282677

SWITCH

Proportional Hydraulics, EH Handle

1шт.

40

87630127

SWITCH

Park Brake

1шт.

41

87668736

SWITCH

Proportional Hydraulics, Mechanical Handle

1шт.

42

87427685

SWITCH

Hydraulic, MOM 1

1шт.

43

87427686

SWITCH

Hydraulic, MOM 2

1шт.

44

282775A1

IGNITION SWITCH

With Keys

1шт.

45

279492A1

RESTRICTION SWITCH

Air Filter

1шт.

46

87392235

SENSOR

Lap Bar/Door

1шт.

47

84311813

PRESSURE SWITCH

Charge Pressure

1шт.

48

84311814

PRESSURE SWITCH

Brake Pressure

1шт.

49

84394768

SENSOR

DPF Temperature

1шт.

50

5801367249

THERMOSTAT

F5C

1шт.

53

84347514

WIPER ARM

Front Door

1шт.

54

84347625

WIPER BLADE,436mm L

Front Door

1шт.

Выбрано товаров: 52
