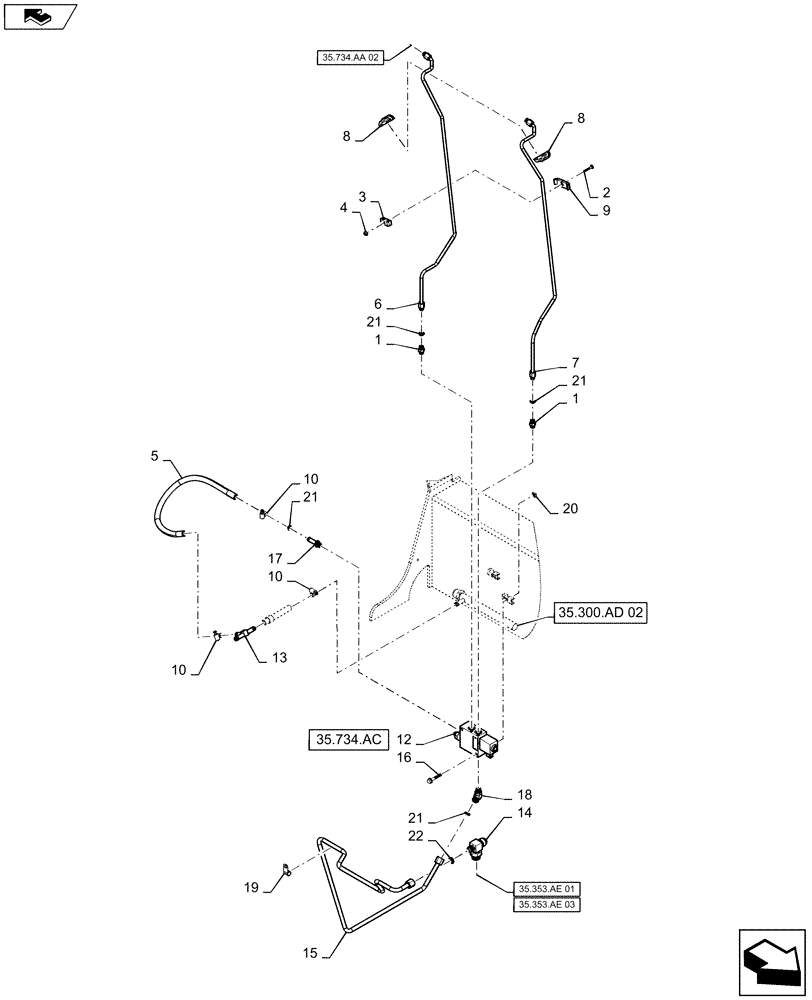

Запчасти Case SR220 (35.734.AA[01]) - HYDRAULIC COUPLER CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

2шт.

2

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

1шт.

3

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double Tube

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

5

84201227

HOSE,12.7mm ID x 615mm L

Hydraulic Coupler Drain

1шт.

6

84259529

HYD TUBE

Hydraulic Coupler

1шт.

7

84259531

HYD TUBE

Hydraulic Coupler

1шт.

8

84277054

BRACKET, SUPPORTING

Hydraulic Tube

2шт.

9

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

1шт.

10

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

3шт.

11

84251346

SWITCH

Rocker, Hydraulic Coupler, Not Shown

1шт.

12

84256406

HYDRAULIC VALVE

Hydraulic Coupler

1шт.

13

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

Option, Drain

1шт.

14

84546403

BRANCH TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 3/4" - 16 JIC

1-1/16" - 12 JIC x 1-1/16" - 12 ORB x 3/4" - 16 JIC, Attach To Loader Supply Valve, Incl 22

1шт.

15

84546406

HYD TUBE

Supply, Hydraulic Coupler

1шт.

16

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

17

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

Incl 21

1шт.

18

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

3/4" - 16 JIC x 9/16" - 18 ORB, 45°, Incl 21

1шт.

19

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

Insulated

1шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8 - 1.25, Class 8, ZND

2шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16" ORB

4шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16" ORB

1шт.
