Запчасти Case SR220 (95.018.AAN) - 4 X 1 BUCKET (UTILITY), SR220 (95) - CE ATTACHMENTS

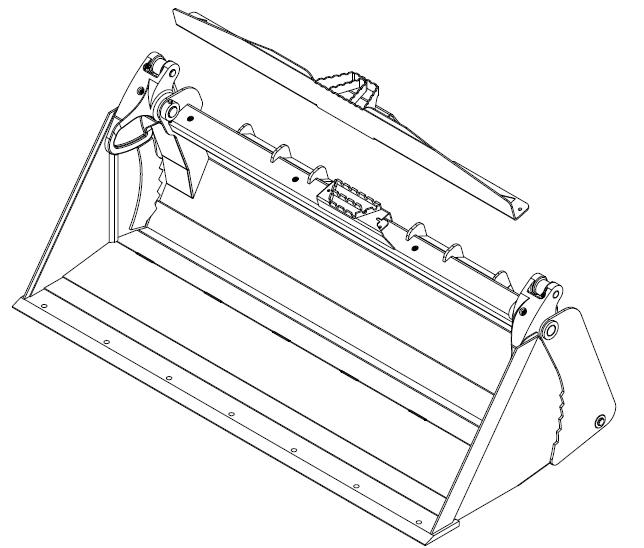

Схема запчастей Case SR220 - (95.018.AAN) - 4 X 1 BUCKET (UTILITY), SR220 (95) - CE ATTACHMENTS

Артикул

Название

Примечание

Количество

1

87648134

4 IN 1 BUCKET

72", Utility, 11.2 Ft³ Struck/15.6 Ft³ Heaped Capacity

1шт.

Std Flow Reqd

1шт.

Model Compatibility: SR150, SR160, SR175, SV185, SR200, SR210, SR220, 410, 420, 430, 440, 420CT

1шт.

2

87648136

GUARD

Bolt-on Spill for 72" 4 x 1 Utility Duty Bucket, Opt

1шт.

3

86577169

CUTTING EDGE,Bolt On, Double Edged, 7 Hole, 203.2mm W x 1825.6mm L

72" Width, Bolt-on, Accessory Available from Case Parts

1шт.

4

HCE86577169

EDGE, CUTTING

72" Width, Bolt-on Rezloh™, Accessory Available from Case Parts

1шт.

5

9624722H

BAR ASSY.

72" Width, Toothbar for Bucket W/O Bolt-on Edge, Accessory Available from Case Parts

1шт.

6

86599708H

BAR ASSY.

72" Width, Toothbar for Bucket W/ Bolt-on Edge, Accessory Available from Case Parts

1шт.

Выбрано товаров: 8
