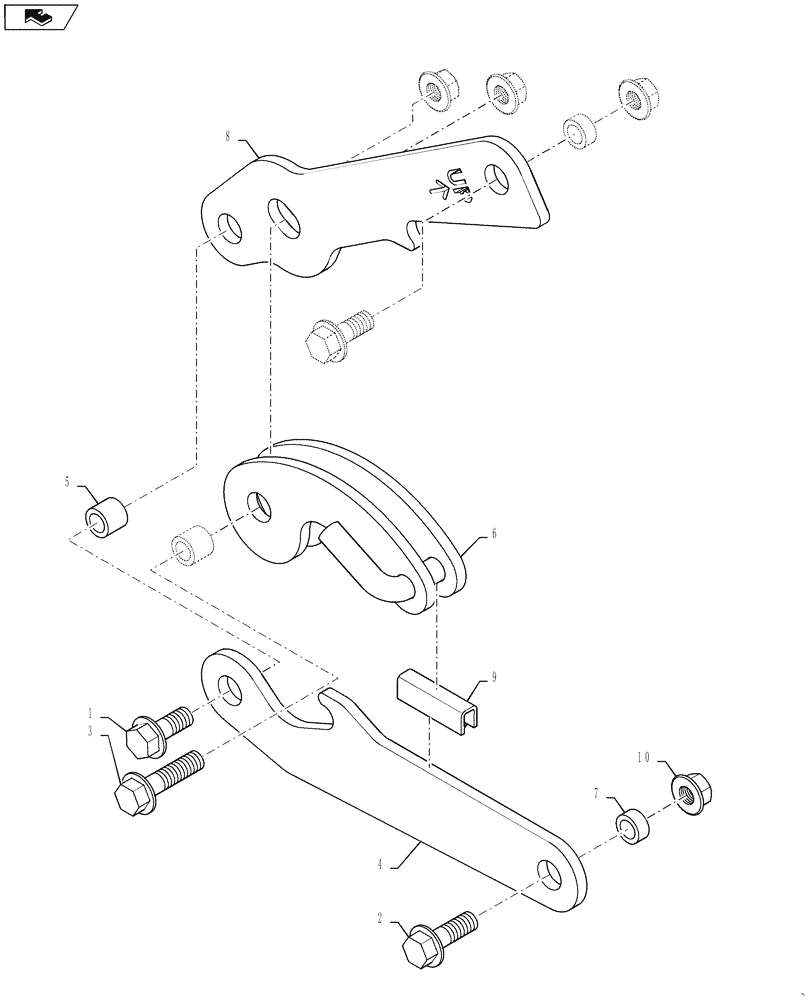

Запчасти Case SR220 (90.150.BD[01]) - CAB TILT LOCK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

2

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

3

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

4

84522081

PLATE

Locking Arm, Lower, Safety Red

1шт.

5

84522089

SPACER,10.34mm ID x 15.88mm OD x 13.5mm L

Cab Lock

2шт.

6

84542292

BRACKET

Cab Lock, Safety Red

1шт.

7

84543202

SPACER,10.34mm ID x 15.88mm OD x 7.2mm L

Cab Lock

2шт.

8

84548032

PLATE

Locking Arm, Upper, Safety Red

1шт.

9

84554254

TRIM,30480mm L

Edging

1шт.

10

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.
