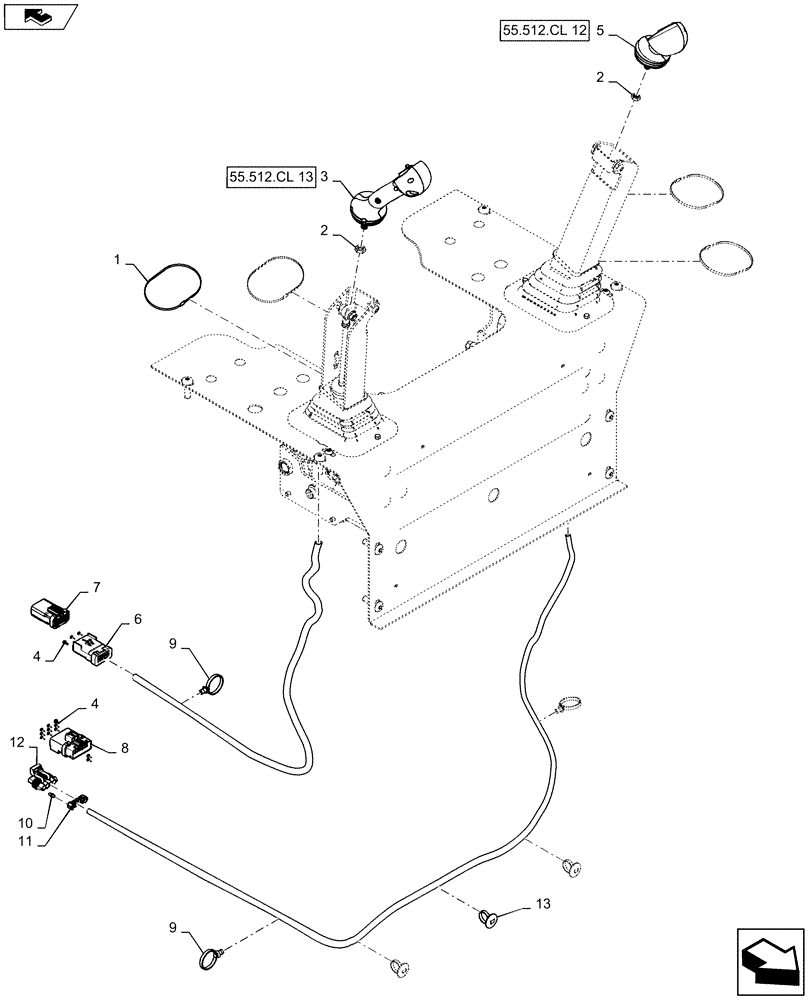

Запчасти Case SR220 (55.512.CL[11]) - LEVEL 300 HANDLE GRIPS, 2-SPEED MECHANICAL CONTROLS, W/ MULTI-FUNCTION ELECTRICAL CONTROL (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

4шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

84201276

HANDLE GRIP

LH, Level 300, Horn, 2 Speed, 3 Multifunction Switches

1шт.

4

84279937

PLUG,Apex, 2.80mm

Used On RH Grip

14шт.

5

84396068

HANDLE GRIP

RH, Level 300, Park Brake, Proportional Hydraulics, Ride Control, 1 Multifunction Switch

1шт.

6

87382923

ELEC CONNECTOR,Male, 10 Cavities

Used On RH Grip

1шт.

7

87382925

WIRE CONNECTOR,Female, 10 Cavities

Used On RH Grip

1шт.

8

87382927

ELEC CONNECTOR,Male, 14 Cavities

Used On LH Grip

1шт.

9

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

10

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity, Used On LH Grip

1шт.

11

87689643

CLIP,4.8mm ID

Wedge, Used On LH Grip

1шт.

12

87697724

ELEC CONNECTOR,Female, 4 Cavities

Used On LH Grip

1шт.

13

378884A2

STRAP,254mm L

Nylon

3шт.
