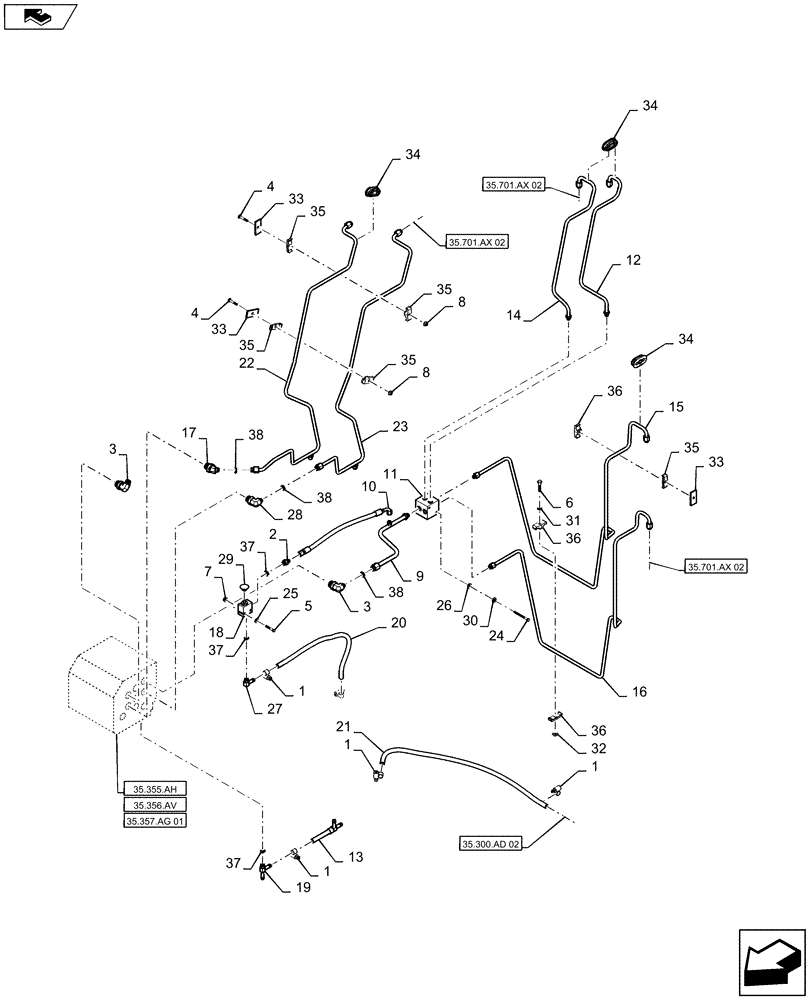

Запчасти Case SR220 (35.701.AX[01]) - LOADER VALVE PLUMBING (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 37

1шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 38

2шт.

4

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

5

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

6

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

84181021

RIGID TUBE

Boom Lift, Loader Valve To Manifold

1шт.

10

84201224

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

Override

1шт.

11

84258823

HYDRAULIC MANIFOLD

1шт.

12

84258884

RIGID TUBE

Boom Lower, Manifold To RH Boom Arm

1шт.

13

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

Auxiliary Drain

1шт.

14

84259727

RIGID TUBE

Boom Lift, Manifold To RH Boom Arm

1шт.

15

84259729

RIGID TUBE

Boom Lift, Manifold To LH Boom Arm

1шт.

16

84259731

RIGID TUBE

Boom Lower, Manifold To LH Boom Arm

1шт.

17

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

3/4" - 16 JIC x 1-1/16" - 12 ORB, Incl 38

1шт.

18

84294239

VALVE

Boom Override

1шт.

19

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1/2" Hose Barb x 1/2" Hose Barb x 9/16" - 18 ORB, Incl 37

1шт.

20

84299733

HOSE,12.7mm ID x 660mm L

Boom Override Valve To Auxiliary Drain

1шт.

21

84299735

HOSE,12.7mm ID x 915mm L

Auxiliary Drain To Main Drain

1шт.

22

84385536

HYD TUBE

Tip, Loader Valve To RH Boom Arm

1шт.

23

84385539

HYD TUBE

Tip, Loader Valve To RH Boom Arm

1шт.

24

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

25

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

26

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

27

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 37

1шт.

28

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 38

1шт.

29

87522292

KNOB

Override Valve

1шт.

30

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8, 8.8mm x 17.5mm x 2.2mm, HTS, BORON, ZND

2шт.

31

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65mm x 23.0mm x 2.2mm, HTS, BORON, ZND

1шт.

32

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10 - 1.5, Class 8, ZND

1шт.

33

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Clamp Top

3шт.

34

376523A2

SUPPORT,1/2"

6шт.

35

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

4шт.

36

D120679

CLAMP,Tube, 1/2"

Tube, 1/2"

4шт.

37

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16" ORB

3шт.

38

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16" ORB

4шт.
